T300, T700, vs. T800 T1000 Carbon Fiber: What’s the Difference and Why the Price Gap?
When discussing carbon fiber raw materials, we must first understand what the letter “T” stands for. In the carbon fiber industry, “T” typically represents the Tensile Strength grade. Generally, the higher the number following the “T,” the higher the tensile strength and the better the overall performance.
The history of carbon fiber spans over a century, but the modern grading system began with T300, invented by the Toray Industries in the last century. Toray is widely considered the pioneer of the carbon fiber field. Over time, T700 gradually replaced T300 as the industry mainstream. Later, T800 pushed performance even further. While higher grades like T1100 and T1400 exist, they are primarily reserved for high-end aerospace applications and are rarely seen in consumer goods.
Performance Disparities
The primary differences lie in Tensile Strength (resistance to breaking), Tensile Modulus (stiffness/resistance to deformation), and Elongation (toughness).
T300: With a tensile strength of approx. 3500 MPa, a modulus of 230 GPa, and an elongation of 1.5%, T300 has low strength and poor flexibility. It has been phased out of high-end sectors; you won’t find it in quality carbon bicycle rims.
T700: Featuring a tensile strength of approx. 4900 MPa, a modulus of 240 GPa, and an elongation of 2.1%, T700 offers high strength and excellent toughness. It is currently the market mainstream for sports equipment, automotive parts, and high-quality bicycle frames and wheelsets.
T800: With a tensile strength of approx. 5800 MPa and a modulus of 294 GPa, T800 is a “top-tier” upgrade over T700. It is the superior alternative for any scenario where T700 is used, offering higher performance at a lower weight.
Manufacturing Processes
The price gap is largely driven by how these fibers are made:
T300 (Wet Spinning): The polyacrylonitrile (PAN) solution is extruded directly into a coagulation bath. This results in a fiber surface with deep, uneven grooves resembling tree bark. While cost-effective, the rough surface limits its application.
T700 and Above (Dry-Jet Wet Spinning): This advanced process involves an air gap between the spinneret and the coagulation bath. This allows for superior control over the fiber’s molecular structure. The resulting fiber is smoother and performs better, but the equipment and technical requirements are significantly more expensive.
Application Fields
T300: Primarily used in cost-sensitive sectors where basic carbon properties are needed but extreme performance isn’t critical. Common applications include aircraft seats, hatches, and automotive interior trim.
T700: Often called the “workhorse” of the industry. It strikes an ideal balance between high performance and reasonable cost. It is widely used in aircraft secondary structural components, lightweight automotive parts, and mid-to-high-end bicycle frames and wheelsets.
T800: Reserved for critical aerospace structures, such as primary load-bearing parts of aircraft and satellite components. In the consumer market, it is found in elite sports gear, including professional racing bikes and high-end fishing rods, where weight reduction is a priority.

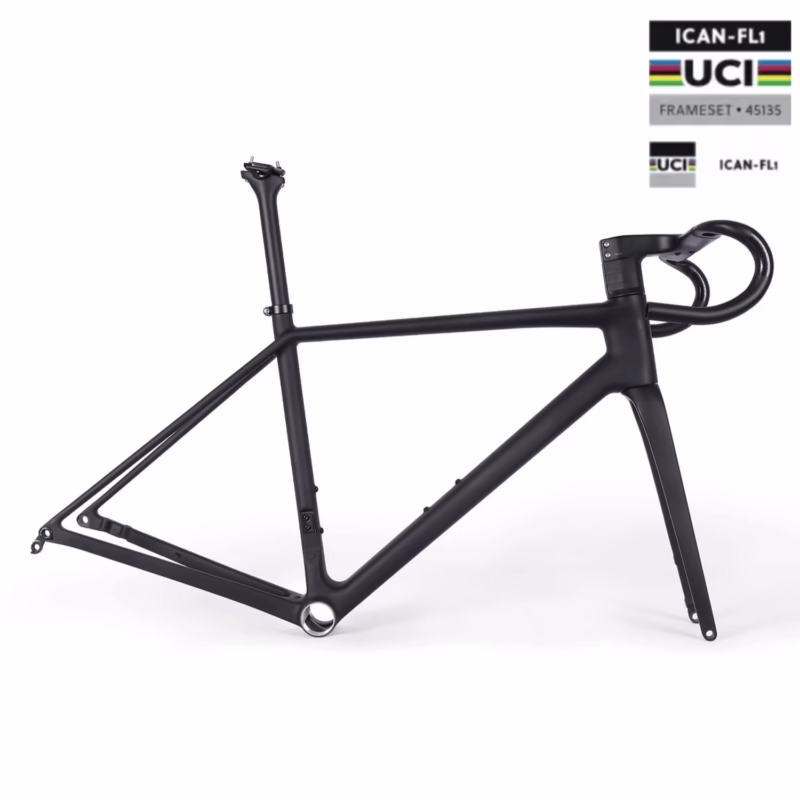

T1000: As an ultra-high-strength fiber, T1000 is used in the most demanding aerospace and defense applications, such as rocket motor cases and satellite pressure vessels. In the cycling world, it is the “Holy Grail” material used exclusively in flagship “superbikes.” It allows manufacturers to use less material to achieve extreme stiffness, resulting in ultra-lightweight bike frames (often sub-800g) for professional mountain climbing stages.
