T1000 Carbon Road Disc Brake Frame Fl1 795g
Description:
The ICAN Carbon Road Disc Brake Frame FL1 is engineered for top performance, featuring a 1-1/2″ headset compatibility and made from high-quality full carbon Toray T1000 & T800 material. This frame masterfully balances lightweight agility with durability, weighing in at just 795g ± 40g.
T47 bottom bracket, The bottom bracket junction comprising the seat tube, down tube and chain stays is a key part of a frame’s stiffness. Bottom bracket shells with smaller inner diameters such as BB86 generally have to resort to wider bottom bracket shells and beefier tubes to achieve what the PF30 (46mm) starting platform can do with smaller diameter tubing. Because a T47 shell starts with a 46mm inside diameter, and has no width restrictions, frame builders have a rather large platform to build up the bottom bracket area of the frame the best way they see fit to achieve their frame’s performance goals.
The frame has passed stringent EN and UCI tests, ensuring top-notch quality for discerning cyclists.
ICAN Bikes offers 100% customizable carbon bikes frame with independent R&D and manufacturing. We provide high-quality full carbon bikes frame at competitive prices. Contact us for special specifications, and we’ll tailor solutions to meet your needs.
| Brand | ICAN |
|---|---|
| Size | 49/52/54/56/58cm |
| Model Frame | FL1 |
| Material | Full carbon toray T1000 & T800 |
| Weave | UD Black |
| Handlebar | HB-22, 400*100mm |
| Seatpost | SP01, 27.2*400mm |
| BB | T47 |
| Headset | top 1-1/2″,down 1-1/2″(fit FSA NO.55R) |
| Thru axle | Front 100*12 / Rear 142*12mm |
| Max tire | 32mm |
| Weight | 795+_40g (54cm) |
| Disc brake | Front 140mm . Rear 140/160mm |
| Test | EN test /UCI test |
Lightweight and High-Performance Design
The T1000 carbon fiber frame is made from premium T1000 carbon fiber material, combined with an innovative lightweight design, with an overall weight of just 795g. This significantly enhances cycling efficiency and speed performance. The frame is equipped with a 1-1/2 inch head tube and a T47 bottom bracket, ensuring exceptional rigidity and handling performance. Through rigorous EN and UCI testing, the FL1 frame provides reliable assurance for riders seeking ultimate performance.
-
- Internal Cable Routing Design
Precise Geometry and Compatibility
The frame features an optimized geometry design, offering multiple size options (49/52/54/56/58cm) to fit riders of various heights and riding styles. It supports a maximum 32mm tire width and is compatible with front 140mm and rear 140/160mm disc brake specifications, paired with 12mm thru-axles front and rear. Whether climbing or descending at high speeds, the FL1 provides excellent stability and agility for road cycling and racing needs.
-
- Integrated Handlebars

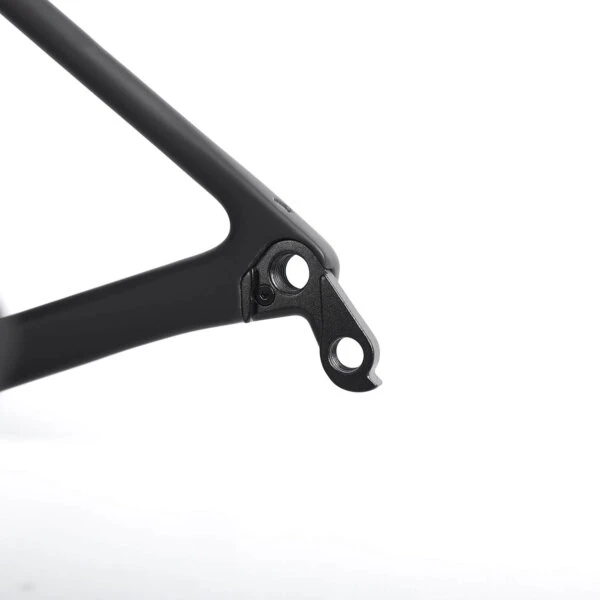

Rear Dropout Design
The rear dropout design is an essential feature of bicycle frames, providing a mounting point for derailleur systems. This specific rear dropout is compatible with Shimano and other major brands, ensuring versatility in drivetrain options. Designed for reliability, it allows for smooth gear shifts and maintains proper alignment under different loads. Its robust construction reduces wear over time, contributing to the longevity of the bicycle.
-
- Rear Dropout Design
Internal Cable Routing
The frame’s internal cable routing design effectively reduces external cable friction and wear, enhancing the bike’s aesthetic while reducing air resistance. This design not only offers a cleaner appearance but also improves cable protection and durability, making the bike suitable for all weather conditions during rides.
UCI Certification：
The ICAN FL1 frame is certified and approved by the Union Cycliste Internationale (UCI),which governs international bicycle racing. Only products that pass rigorous testing receive this certification, allowing them to be used in UCI-sanctioned road races.
Custom Painting Services:
We have a professional design and painting team to provide you with professional customized painting services.
Custom Painting - Electroplating coating process for bicycle frames
Custom Carbon Bike Frames Painting Color matching matte coating ICAN FL1
Custom Carbon Bike Frames Painting ICAN FL1-Purple sectional painting
Custom Bike Frames Painting - ICAN FL1-Full spray of YS775-1 with color-cut gradient
Custom Carbon Bike Frames Painting-Dark red fabric texture- ICAN FL1
Custom Frames Painting-Gradient from transparent varnish to white background in color 19818C- ICAN FL1
Custom Carbon Bike Frames Painting ICAN FL1
ICAN FL1 Custom Painting carbon Frameset
T1000 Frame Carbon Fiber Internals
Our endoscopic review of the ICAN FL1 exposes a T1000 carbon fiber interior with smooth, flat walls and no excess buildup. This clean construction ensures a lightweight frame with dependable strength and precision for road cycling enthusiasts.
Geometry：
Amazing frame with custom decals and paint, fantastic comany to deal with
I have ridden my ICAN FL1 for over 1,300km now and I love it. The frame is stiff yet compliant and I can ride it all day long comfortably.
The build was very easy – everything was aligned perfectly and there were no installation issues.
The ICAN team were very responsive to deal with. I sent them the design files for the decals which they printed and they sent numerous design mockups and sticker placement photos to ensure everything was 100% to my satisfaction. The custom paint colour turned out amazing and the finish is flawless.
My size 52cm frame custom painted came out to 875 grams. I am 170cm tall and the bike fits perfectly.
Vibrant white-to-color gradient
Wow, this custom paint job is amazing! ICAN FL1 frame’s vibrant gradient from white to colorful blue, pink, yellow, and green flecks looks like a watercolor masterpiece. The dynamic graphics are visible from every angle, and the sleek black components paired with the tan sidewall tires bring it all together for an amazingly stylish ride!
Impressed with the ICAN FL1 – Fast Delivery and Excellent Quality
I was pleasantly surprised when the ICAN FL1 frame arrived much earlier than expected—nearly one to two weeks ahead of schedule. The frame was well-packaged and arrived in perfect condition, with no signs of damage. It looks fantastic in person, and I’m genuinely excited to start building it up.
Highly Satisfied with My Purchase
Hello ICAN Teams,
My frame arrived today. The package was perfectly packed and the frame arrived in perfect condition.
I used a stethoscope camera to check the inside, the frame is near perfect. Very good product quality.
Thank you very much for your pleasant service and the wonderful FL1 bike frame.
Second custom build on the frame Ican FL1
The bike below in rainbow grey is my first build for a my wife (49/XS). This red bike S/52 in custom dirty cherry paint is the one I use.
Both bikes are absolutely great with Dura Ace and Sram RED setup!
Weight 6.2 kg
