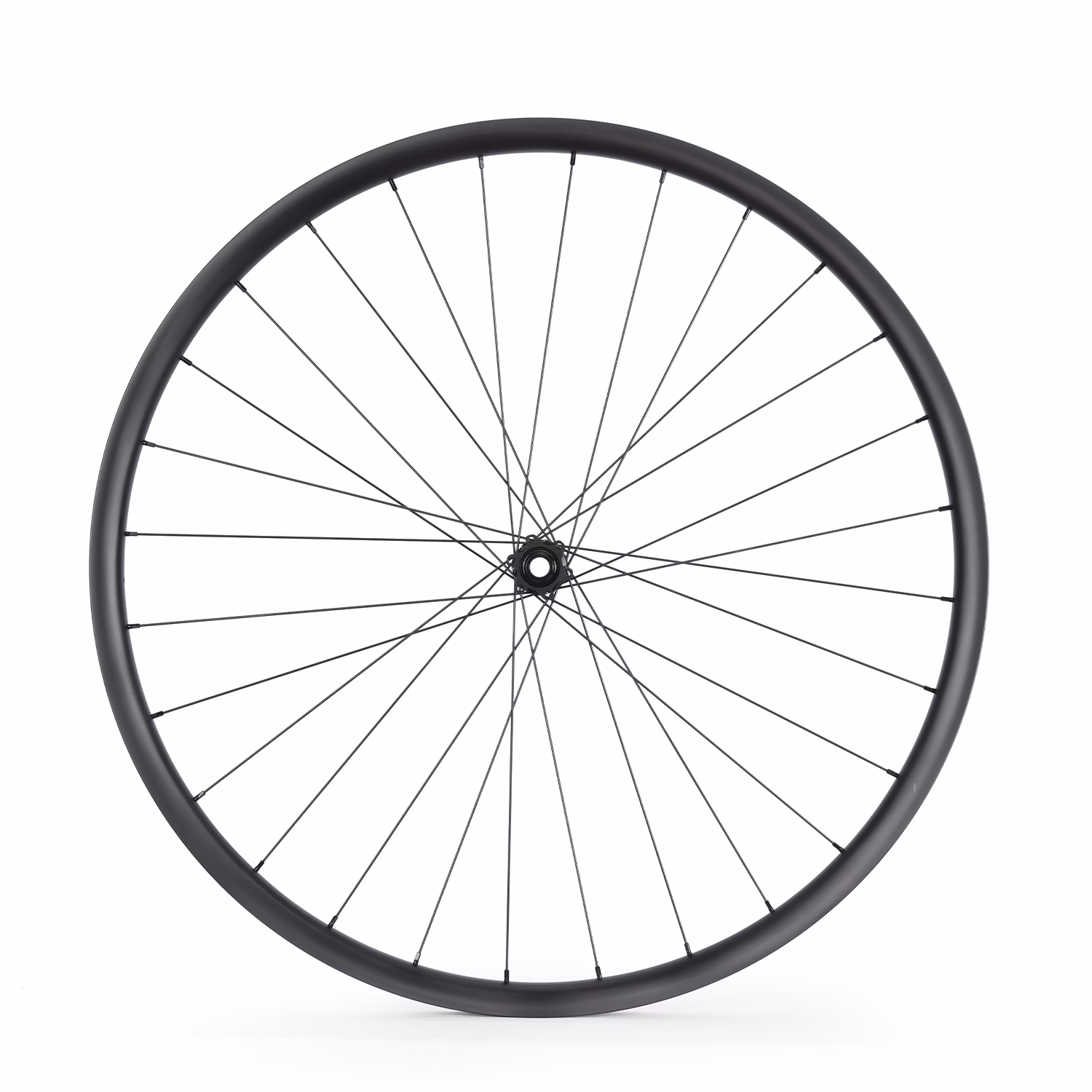

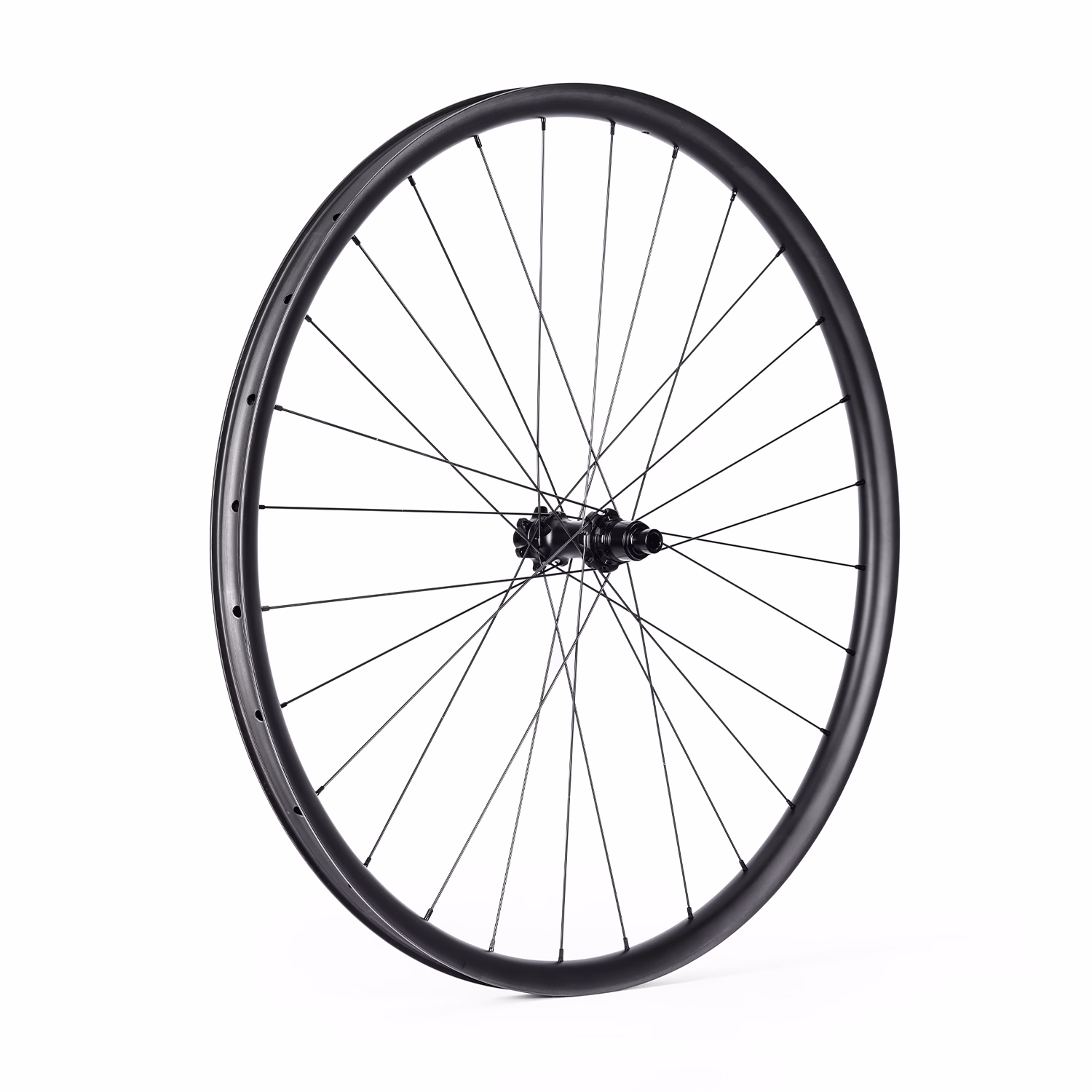

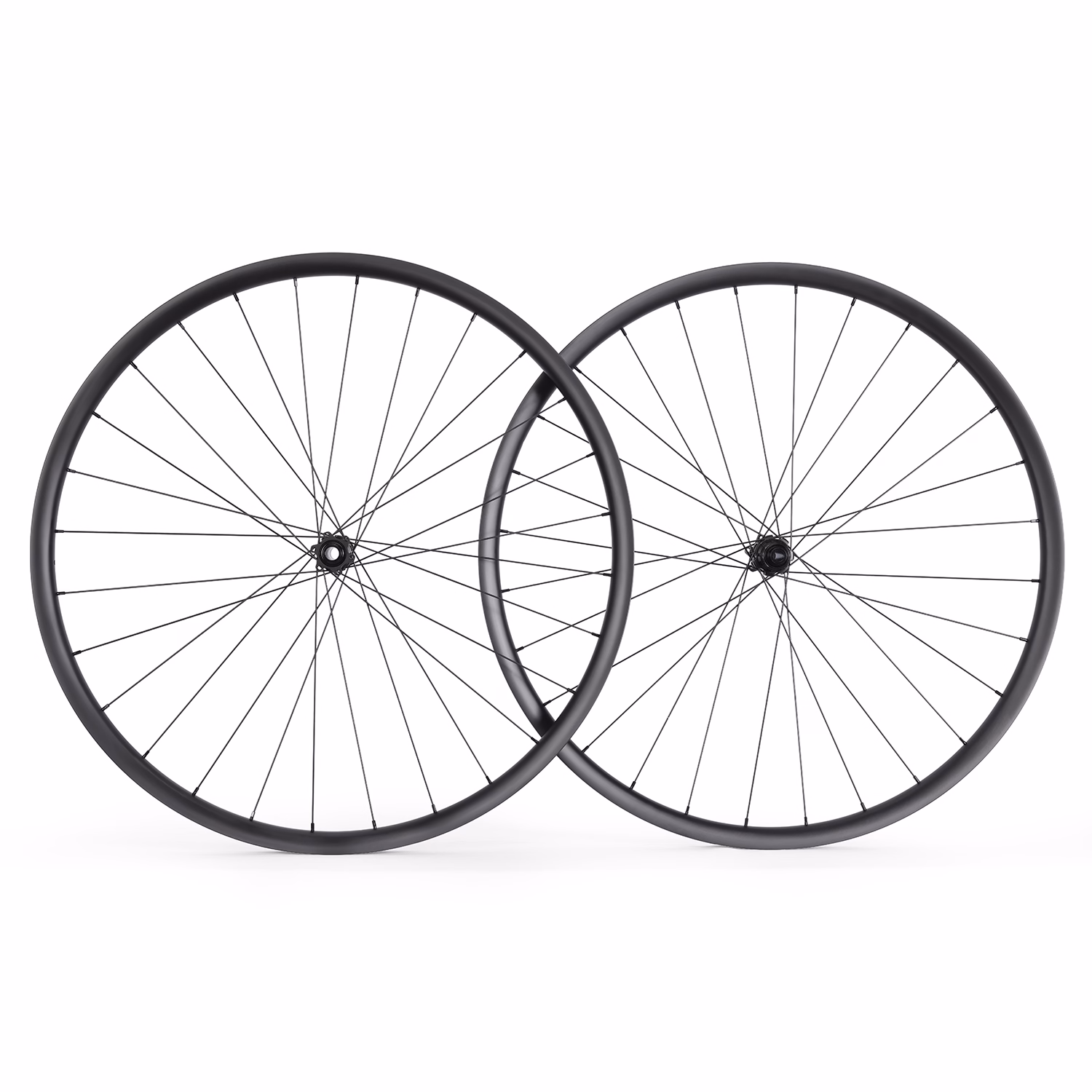

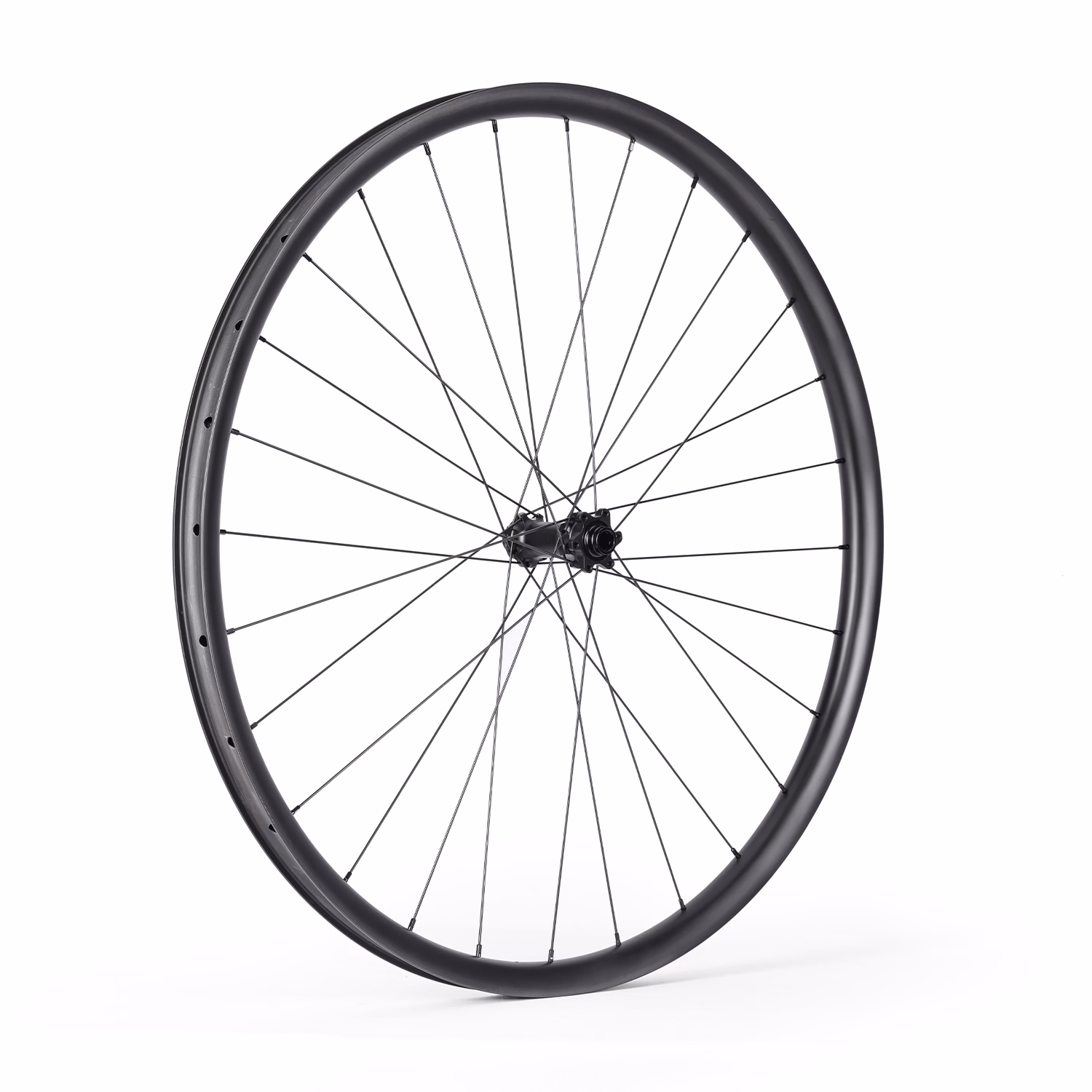

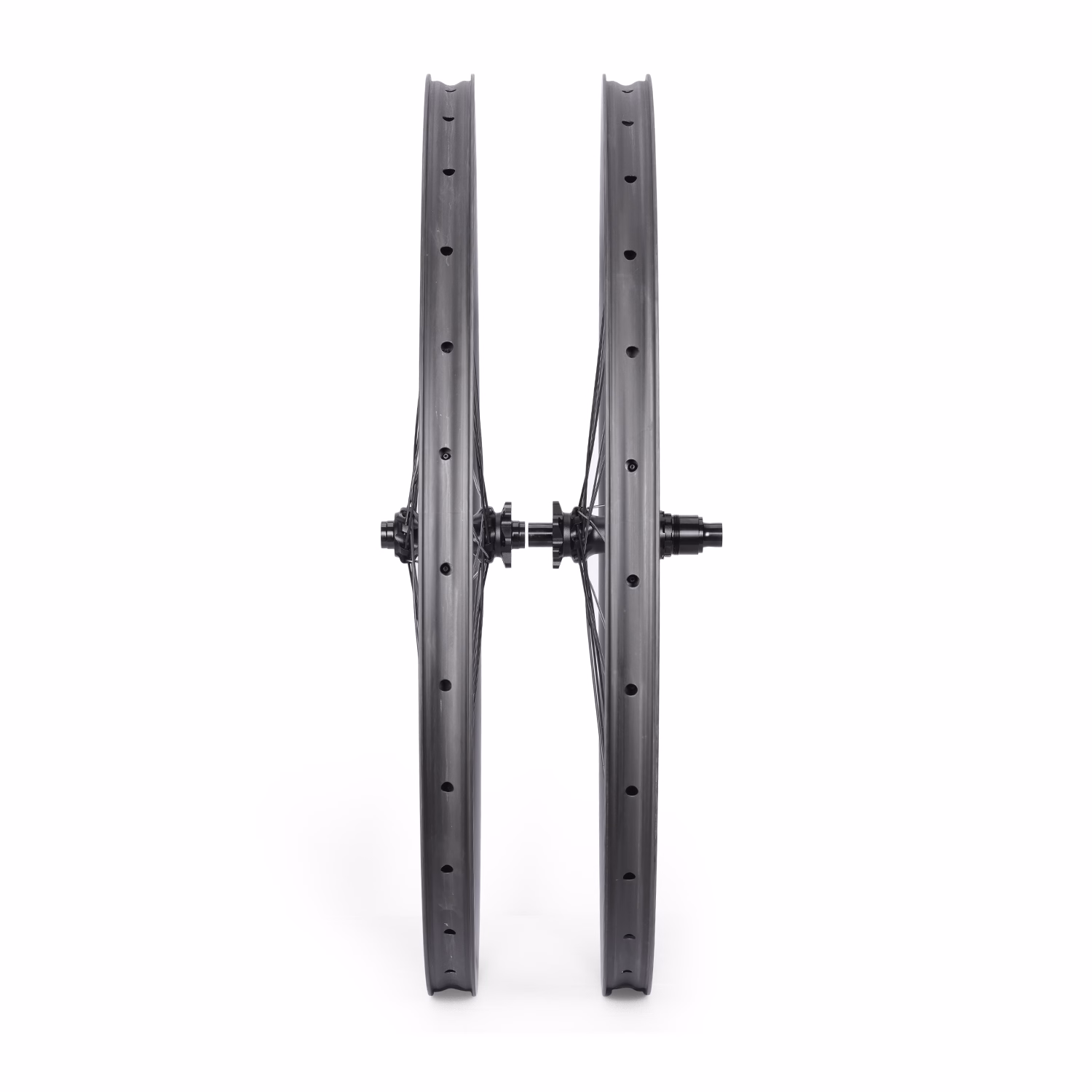

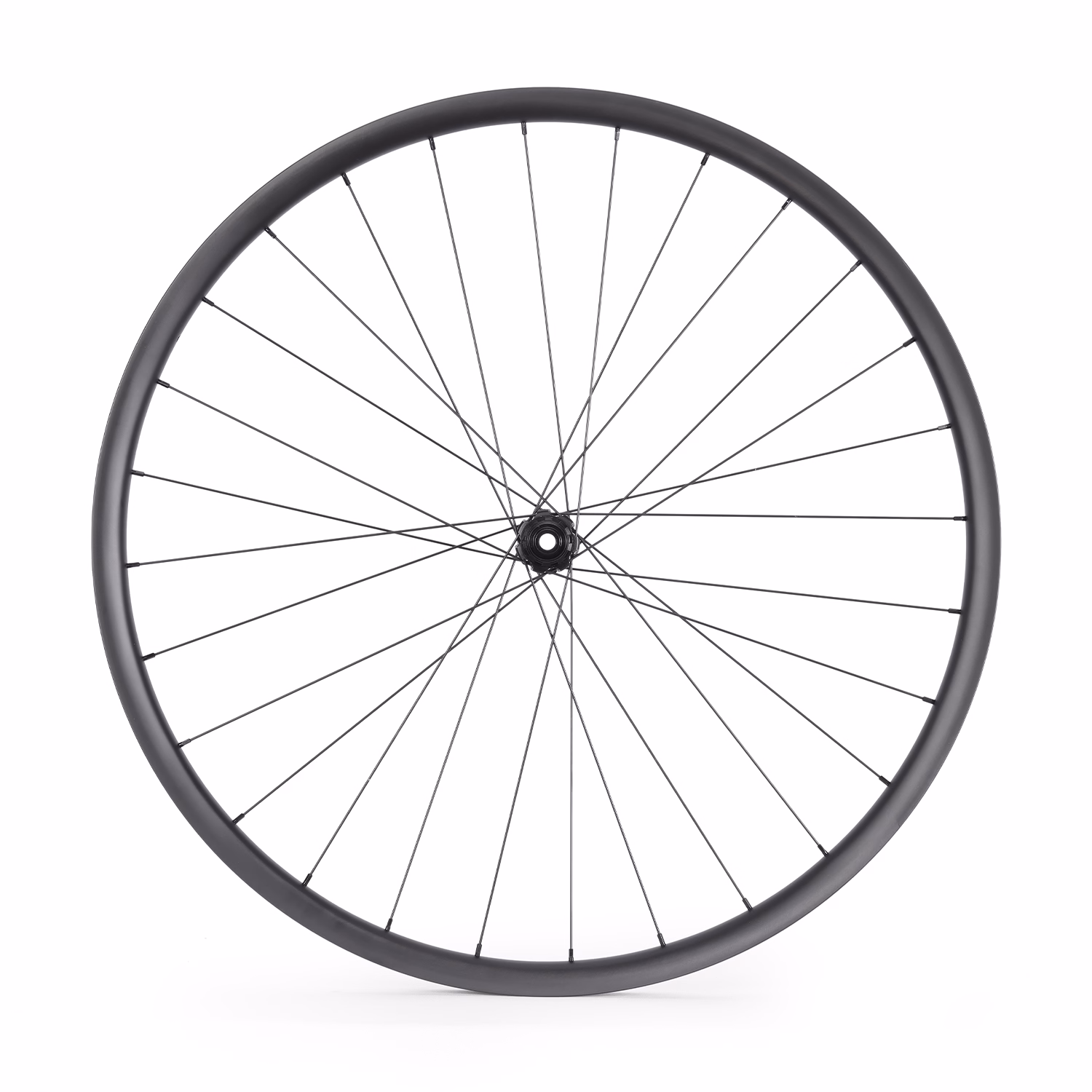

Ultra-Light Carbon MTB Wheelset XC 32ER Carbon Wheels
ICAN 32ER Ultralight Carbon Rim is engineered to eliminate the high rotational inertia and sluggish acceleration typically associated with oversized wheel diameters. By leveraging cutting-edge composite engineering and a wide-body structural design, we have achieved the ultimate equilibrium: a featherweight 370g profile that sacrifices neither structural rigidity nor handling stability. It is purpose-built for off-road riders who demand an uncompromising trail feel and elite-level racing performance.
The drivetrain is the heart of any wheelset’s performance. To meet the distinct demands of Gravel and XC environments, we have developed a high-performance component matrix that prioritizes lightweight construction, high stiffness, and deep customization. This ensures that every watt of rider input is converted into immediate, lossless, and efficient forward momentum.
ICAN Bikes offers 100% customizable wheels with independent R&D and manufacturing. We provide high-quality wheels at competitive prices. Contact us for special specifications, and we’ll tailor solutions to meet your needs.
370g — Featherlight Weight, Unwavering Stability
High-Modulus Toray Carbon. Outpace the Lag.
- Ultralight Breakthrough:By maintaining the 32-inch rim weight at approximately 370g, we have significantly reduced rotational inertia for more agile take-offs and explosive acceleration.
- High-Modulus Construction:A precision blend of Toray T800 and T1000 carbon fiber ensures a perfect harmony between featherweight design and high-strength rigidity.
- Stable Tracking:The 30mm internal width paired with a hookless tubeless design provides rock-solid lateral support for high-speed cornering on technical off-road terrain.
All-Terrain Drive Systems
Engineered for Gravel & XC. Unleash Ultimate Power.
Focused on the demands of high-speed cruising and steep climbing on all-terrain courses, this kit prioritizes lightweight construction and aerodynamic efficiency.

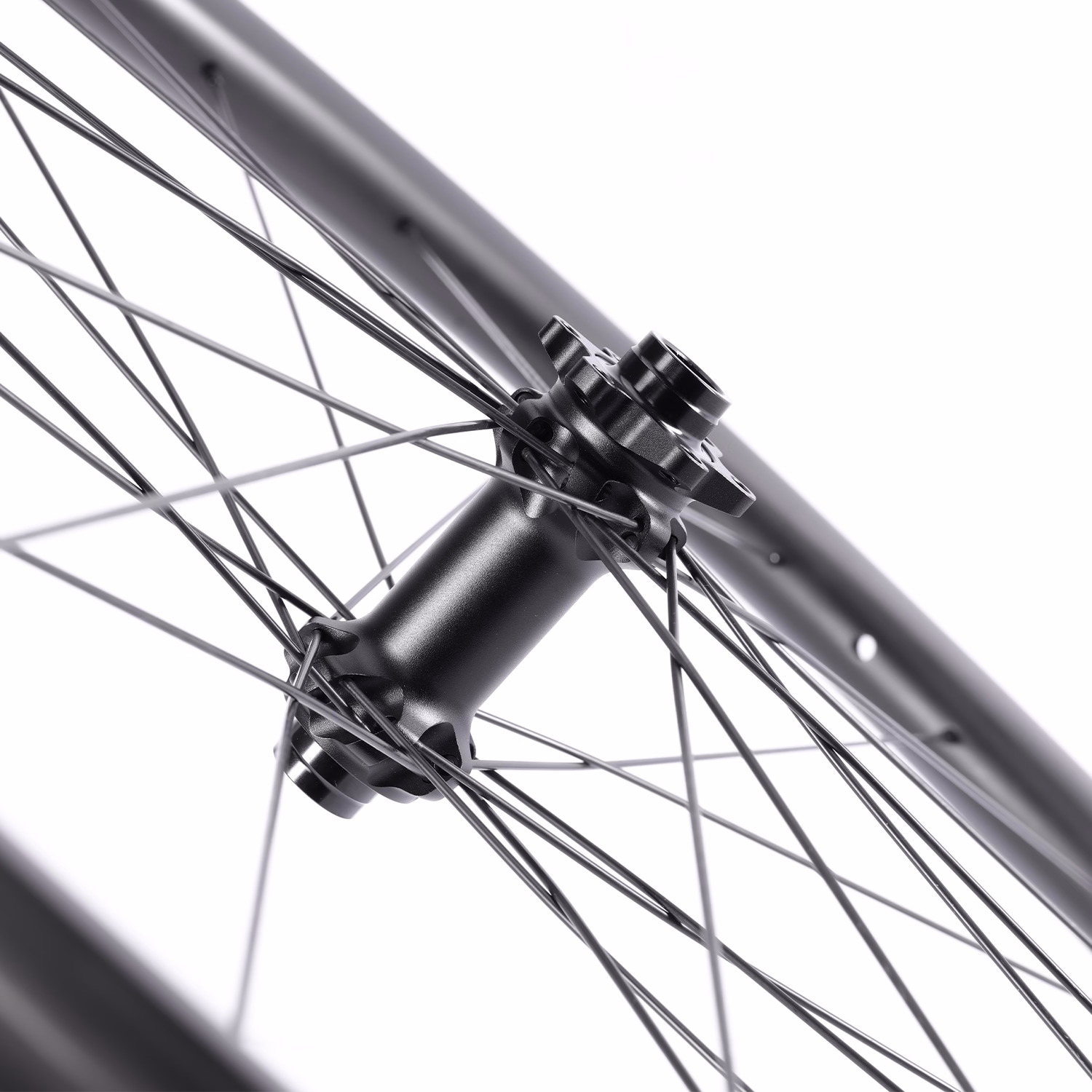

Structure & Braking: Featuring a streamlined 24-hole layout with standard 12x100mm and 12x142mm spacing. Paired with D24/28 series hubs and Centerlock disc mounts, the overall aesthetic is remarkably compact.
Spokes: The 24H configuration utilizes Pillar 1423 or Alpina Ultralite Aero aerodynamic spokes, combined with SAPIM alloy nipples to slash rotational drag while maintaining superior lateral stiffness.

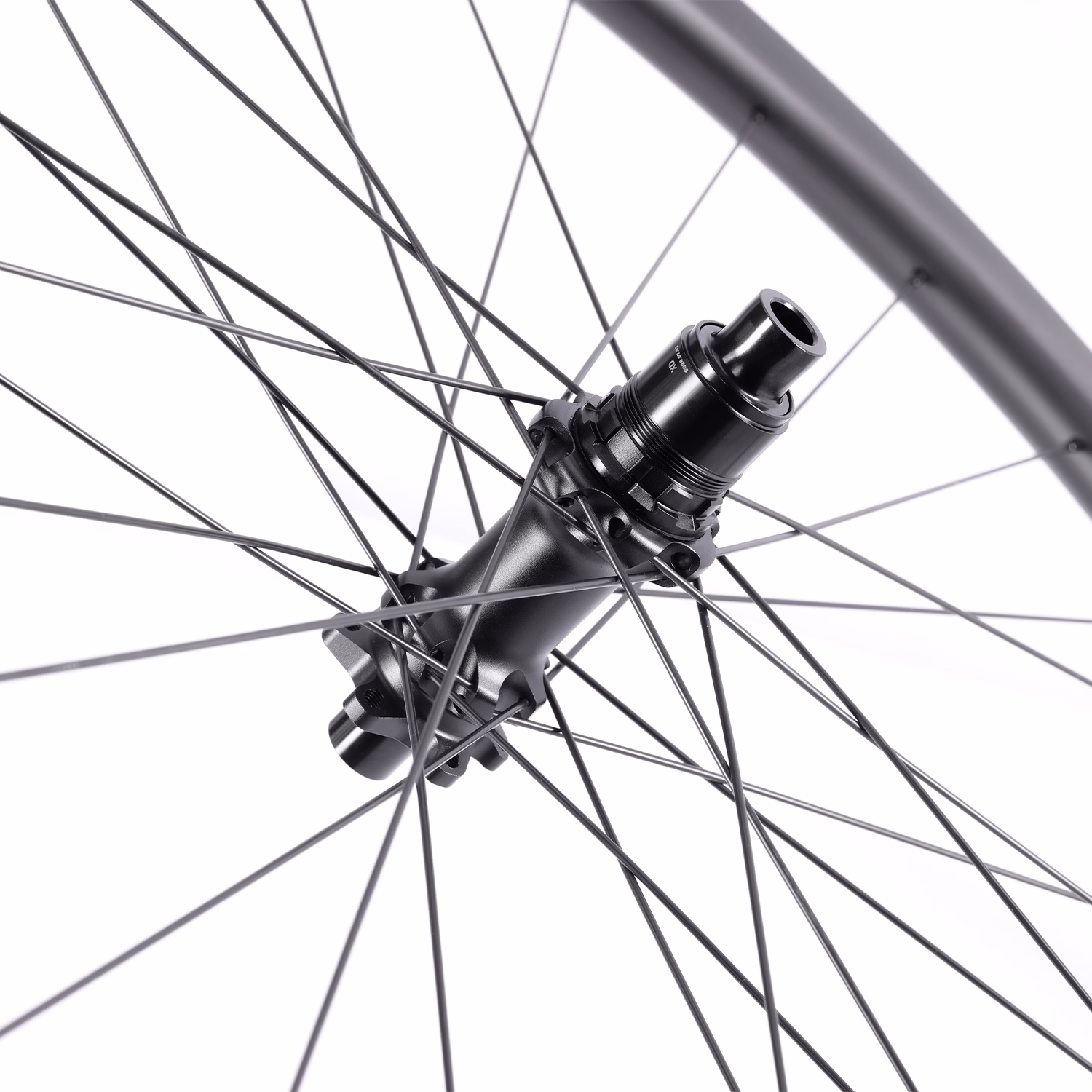

Compatibility: Available with XDR and SHIMANO freehub bodies for seamless integration with all mainstream Gravel groupsets.
XC Specification (Boost): Rugged Impact Resistance & Elite Hub Matrix
Engineered for technical singletrack and high-drop impacts, the XC spec shifts focus toward maximum structural rigidity and instantaneous power response.
Reinforced Foundation: Utilizing 15x110mm / 12x148mm Boost spacing, upgraded 6-bolt disc mounts, and a 28H spoke count front and rear, significantly raising the wheelset’s limit for torsional resistance and impact durability under extreme conditions.
Full Freehub Coverage: Compatible with the three major MTB standards: SHIMANO, SRAM XD, and Shimano Micro Spline.
Pro-Level Component Library: The core value of this spec lies in its customization. Beyond the standard options, riders can hand-pick hubs based on their requirements for smoothness and engagement angle:
DT SWISS: Race-proven 240 EXP / 350 (renowned for stability and ease of maintenance).
Industry Nine: Choice of 1/1 or the legendary Hydra, featuring 690 points of engagement for near-zero-lag power transfer.
Boutique Customization: Options for precision-engineered Chris King BOOST, Hope Pro 5, or Erase MTB to create a personalized, top-tier mountain bike wheelset.
Spoke System: Also available with Pillar 1423 or Alpina spokes, allowing riders to fine-tune the perfect balance between strength and weight.
Strict QC Barriers: Redefining Safety Standards
ISO 4210-7 Certified | 100% Dynamic Balance
Tested against the latest ISO standards, our mandatory 100% dynamic balance testing helps eliminate high-speed wobbling, ensuring exceptional stability.
Supply Chain Empowerment: Craft Your Unique Edge
100% Source Manufacturer | Highly Flexible OEM/ODM Customization
Fully customizable from drilling angles to carbon weaves and finishes.
We deliver fast, proven solutions to help you capture the premium market.
| Brand | ICAN |
|---|---|
| Type | Carbon MTB /Gravel/XC |
| Model | 32ER-XC |
| Material | Toray T800 + T1000 carbon fiber hybrid weaving |
| Size | 32er |
| Depth | 28mm |
| Inner/Outer Width | 30mm/36mm |
| Profile | Symmetric, Hookless / Tubeless Ready |
| Hole | 24H/Customized holes |
| Rim Weight | 370±15g |
| Wheelset Weight | 1600±30g(Paintless), front 765g±15g, rear 835g±15g |
| Gravel Specifications | |
| Hub | D24/28 (12x100mm / 12x142mm), Centerlock |
| Driver | XDR / SHIMANO Compatible |
| Spokes/Nipples | pillar 1423 /Alpina Ultralite Aero, SAPIM Aluminum Alloy Nipple |
| XC Specification (Boost) | |
| Standard Specifications | 5x110mm / 12x148mm, 6-bolt, 28H/28H |
| Driver | SHIMANO / SRAM XD / Shimano Micro Spline |
| Optional Hub List | ●DT SWISS: 240 EXP / 350 ●Industry Nine: Hydra (690 P.O.E) / 1/1 ●Premium Options: Chris King BOOST / Hope Pro 5 / Erase MTB |
| Spokes | Pillar 1423 / Alpina Optional |
| ERD | 653mm |
| Recommend tire width | 2.1″ ~ 2.7″ |
| Spoke Tension | ≤145kgf recommended |
| Tire Pressure | 35psi max |
| Max Cyclist Weight | Standard 130kg / HD 150kg |
| Warranty | 2 Years |
| Test | EN test |
| OEM/ODM Service | holes , drilling angle , spacing ,weave ,pattern customized acceptable |
There are no reviews yet. Be the first one to write one.
ICAN Sport Co.,Ltd, located in Shenzhen with offices and factories,is one of professional manufacturers about carbon bikes and all carbon parts for many years. Found in 2009, more than 200 workers, producing about 1700 PCS frames and 1000 SETS wheelrims per month,now our company enjoys long-term business relationships with many clients on the basis of mutual help.
Our focused items are high-end wheelrims and fashion-trend framesets. To meet strict quality standards and requirements, we have a design team and our own brand ICAN. Currently, both OEM (Well-known brands ) and ODM products are available to meet worldwide requirements ( Passed SGS/EN Test). The products have been exported to America, Canada, Germany, Italy,Singapore, Japan and other international markets. To offer super feeling and do help for agents/ wholesalers, it is our eager dream. We always pursue the policy of “Quality First, Prestige Highest “and promise “Best Quality and Service”. By way of best quality, quick leadtime,kind after-sales service, we are looking for sincere and serious friends to join us together, to create value and fun together! Welcome to our factory!
We provide customized various capabilitis !
We provide various customized services to help clients develop their own brand.
Customized Painting&Logo
We also can painting and decal logo on frames&rims&carbon bicycle parts.
Customized Produce
Rims’ produce can choose paint-less/holes quantity/No Rim-Bed-Hole Tubeless customized produce way.
100% Handbuild Wheelsets
Every wheelsets is purely handbuild.
OEM&ODM
We have a professional engineer team to open OEM molds according to customer requirements.
