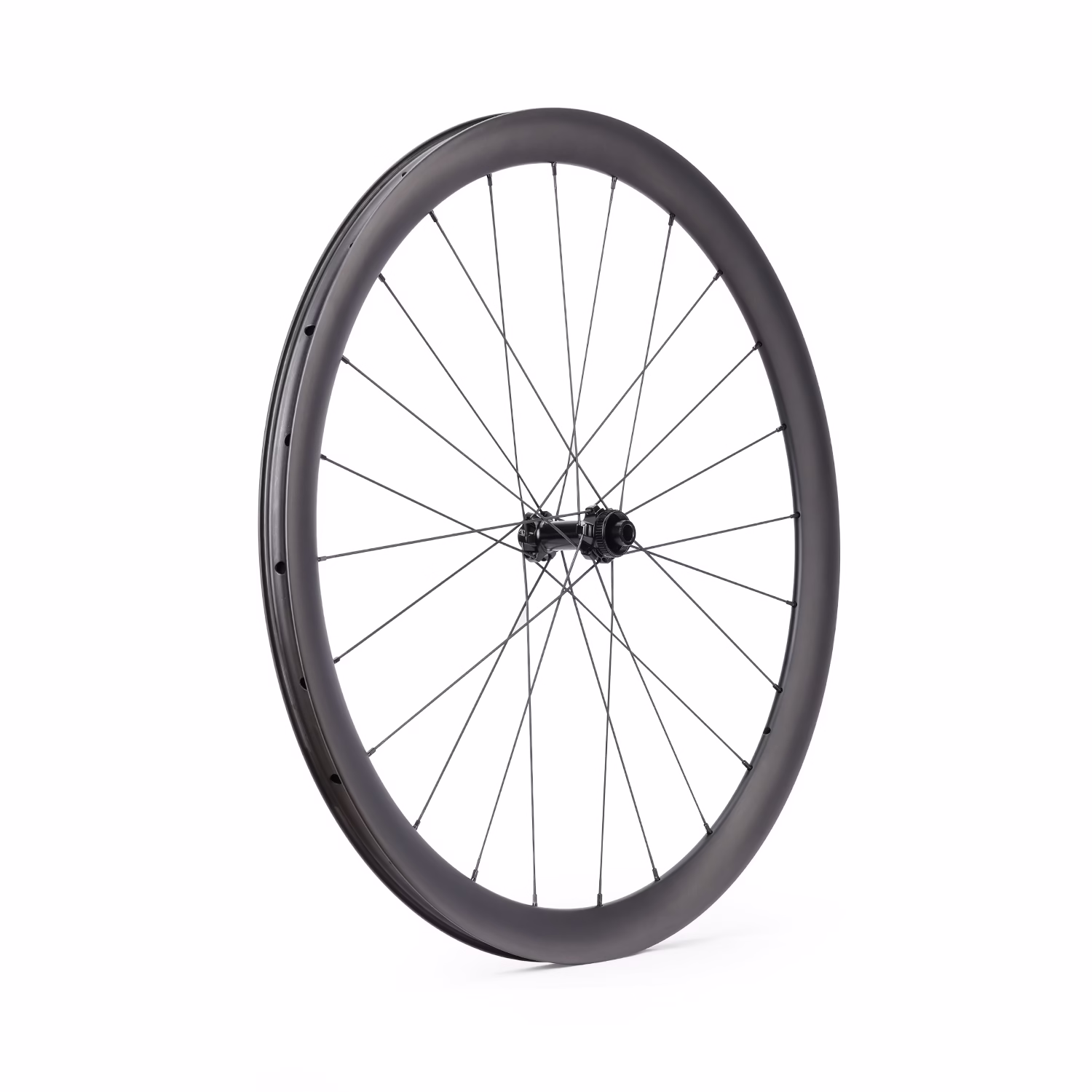

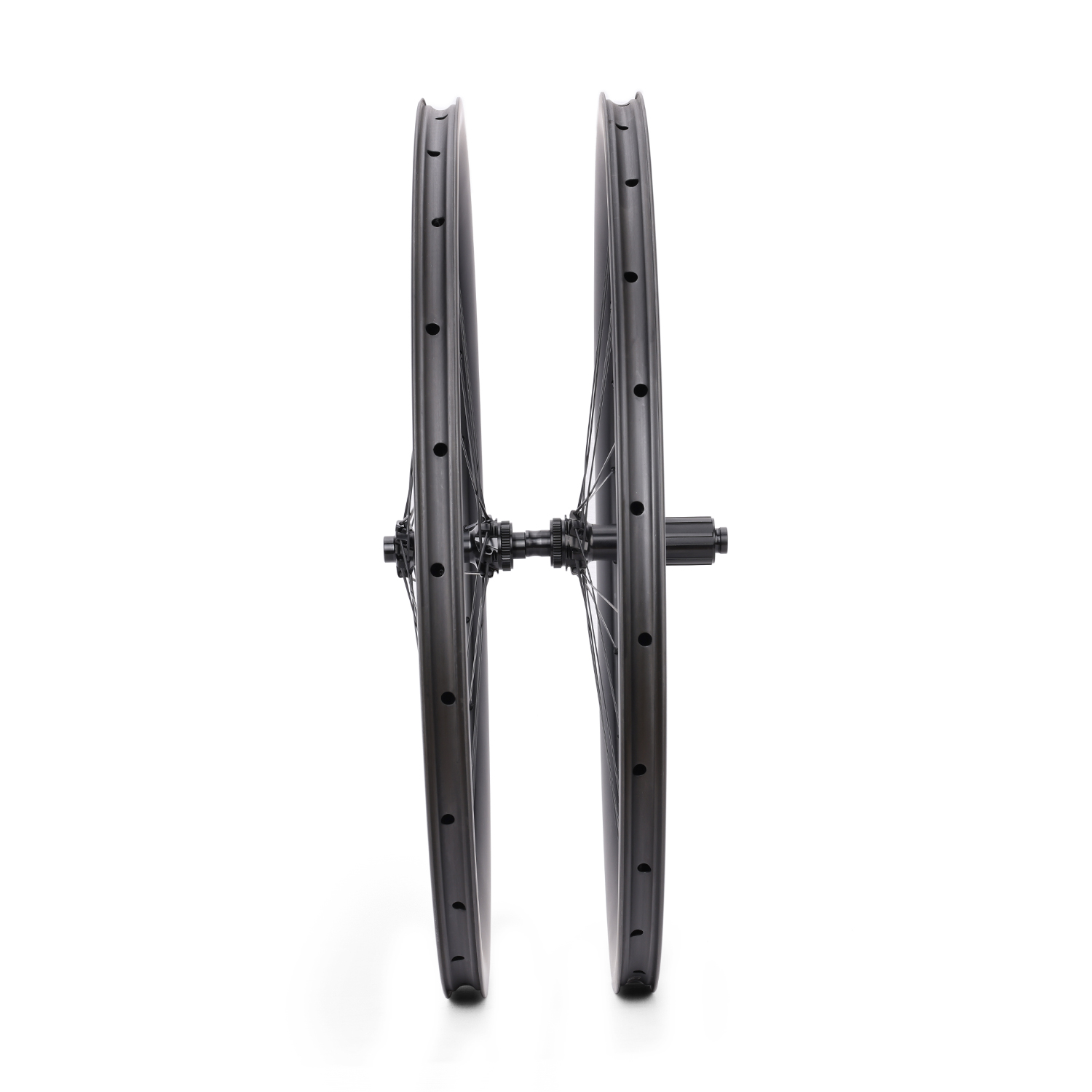

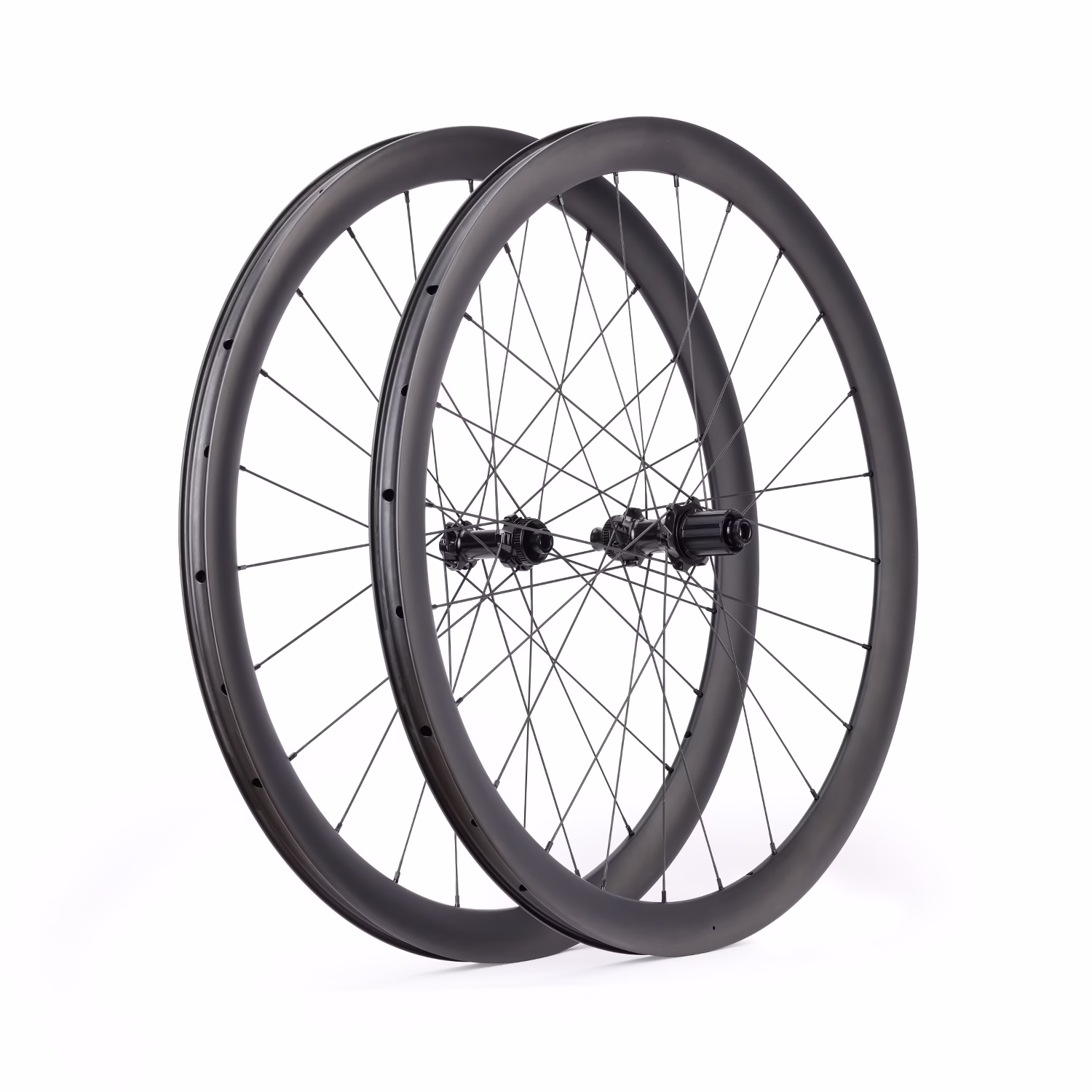

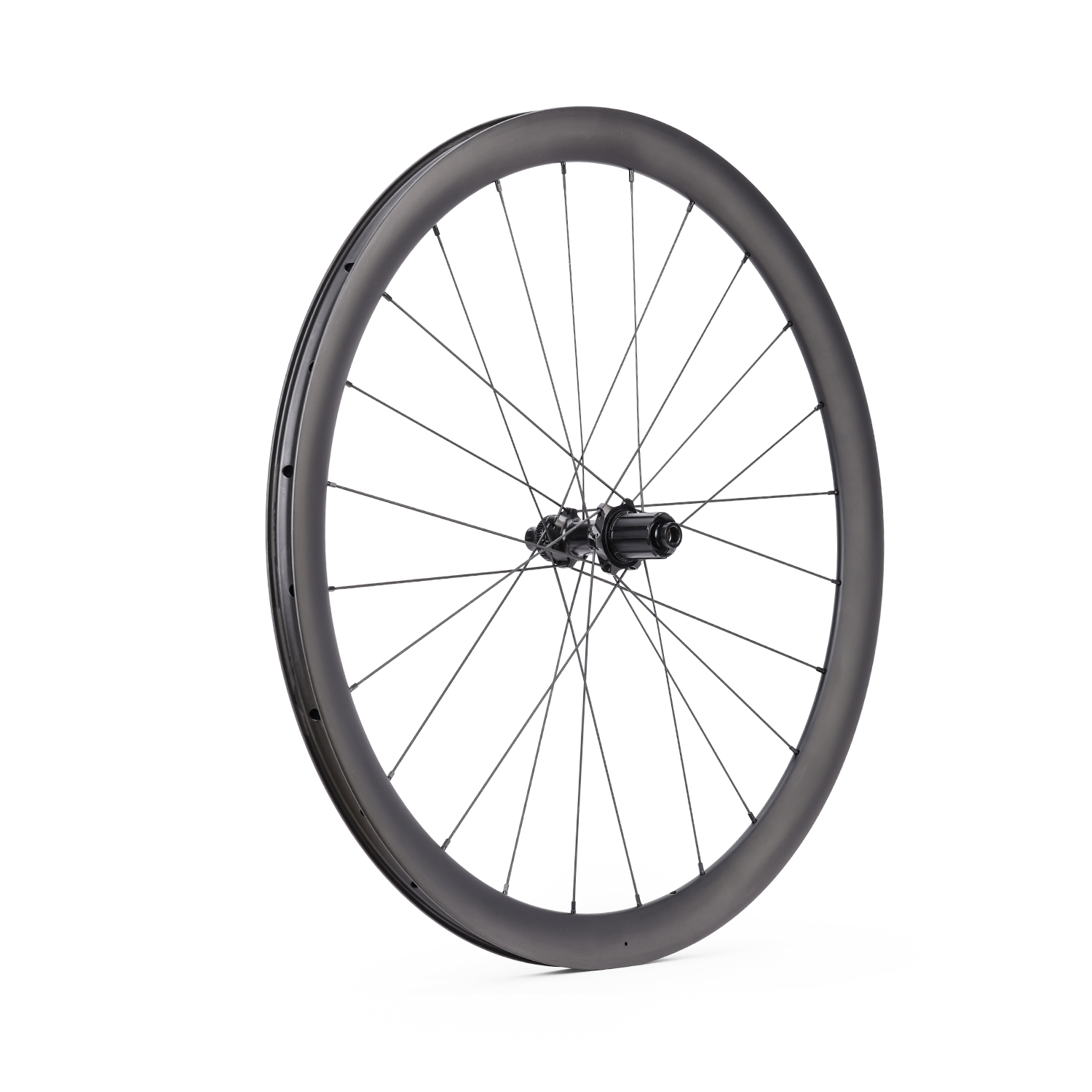

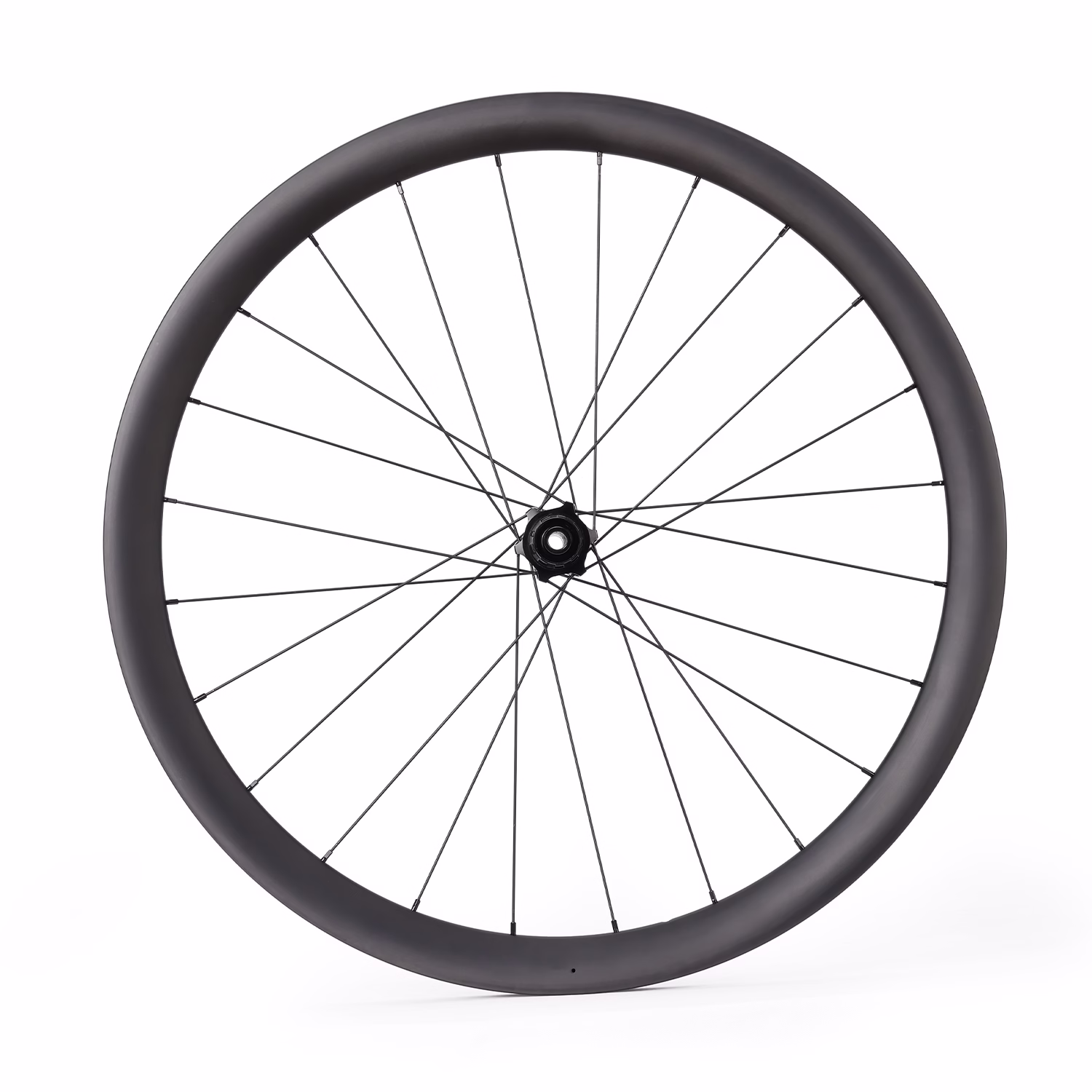

Lightweight Carbon Disc Road wheelset 40C
ICAN Lightweight Carbon Disc Road Wheelset 40C is constructed with Toray T700 and T800&T1000 premium carbon fiber, offering a durable and lightweight build. Designed for 29″/700C with a clincher bead type, it has an inner/outer width of 23mm/29.7mm, a rim weight of 320g±15, and a wheelset weight of 1200±30g (paintless), ensuring efficiency for road cycling.
The 40C wheels feature a 40mm rim depth and a smooth sidewall curvature, reducing air drag and improving crosswind stability. With a D24 ratchet system hub, 24H spoke setup, this wheelset enhances aerodynamic performance and structural integrity on diverse terrains.
ICAN Bikes offers 100% customizable wheels with independent R&D and manufacturing. We provide high-quality wheels at competitive prices. Contact us for special specifications, and we’ll tailor solutions to meet your needs.
| Brand | ICAN |
|---|---|
| Type | Carbon Road disc /Gravel Wheels |
| Model | 40C |
| Material | 100% Carbon Fiber Toray T700 & T800 T1000 |
| Size | 29″/700C |
| Depth | 40mm |

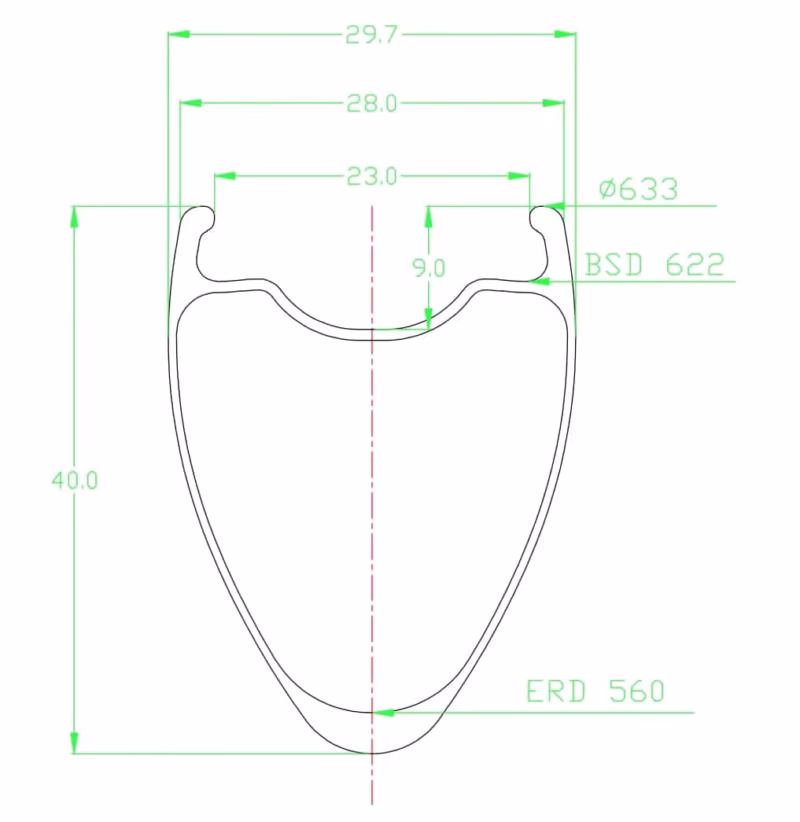

| Inner/uter Width | 23mm/29.7mm |
| Profile | Clincher tubeless ready |
| Intended Use | Road disc/Gravel |
| Hole | 24H/24H |
| Spokes | Sapim CX ray |
| Rim Weight | 320±15g |
| Wheelset Weight | 1200±30g(Paintless), front 550g±15g, rear 650g±15g |
| Freehub | Shimano(XDR choice) |
| Max Cyclist Weight (on flat ground) | 125kg/275lbs |
| Astm Classification | 2 |
| Spoke Hole Angle | front wheel ±4.7°/±8.4°, Rear wheel ±4.31°/±8.39° |
| Rear axle sizes | 100*12mm, 142*12mm |
| Recommend tire width | 28C-45C |

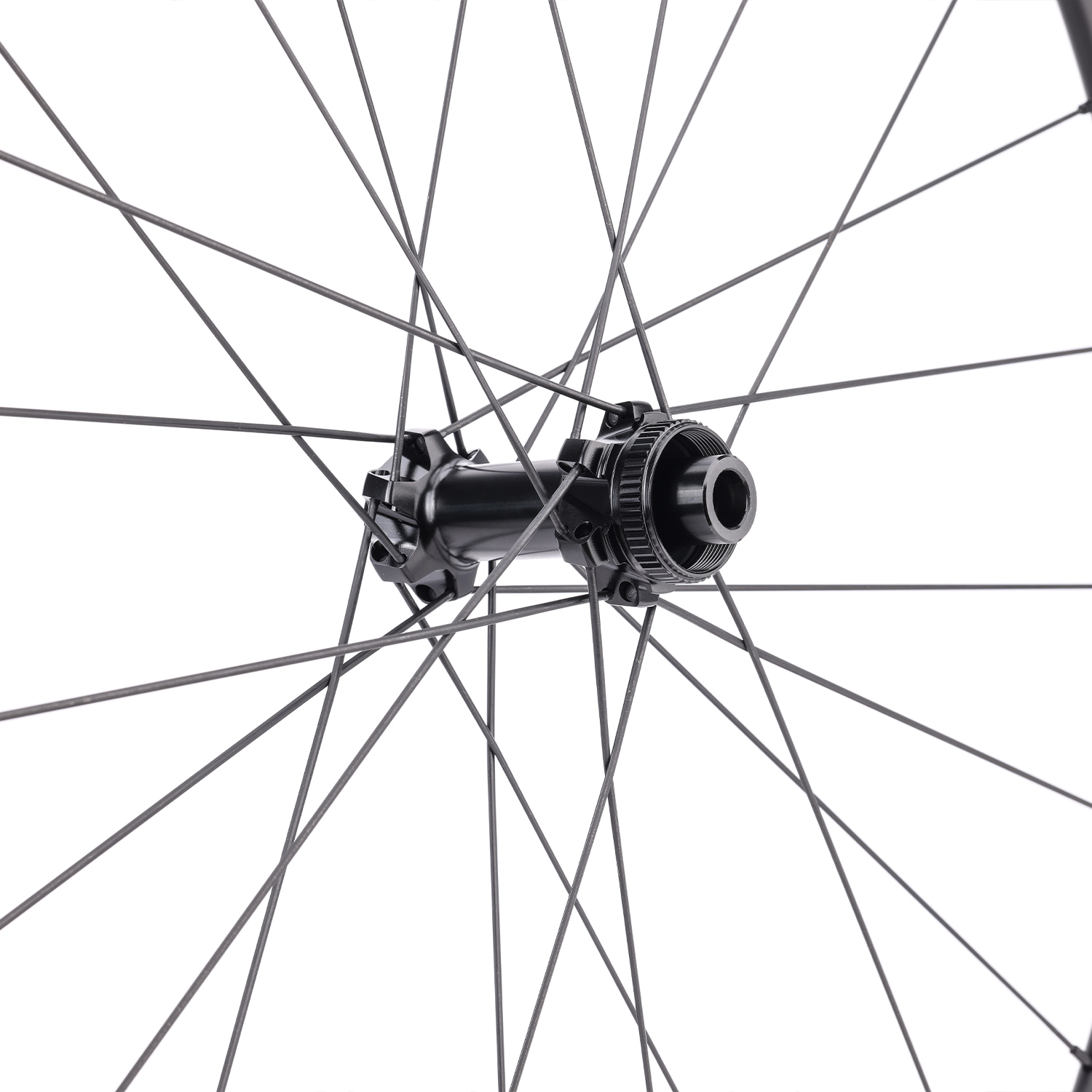

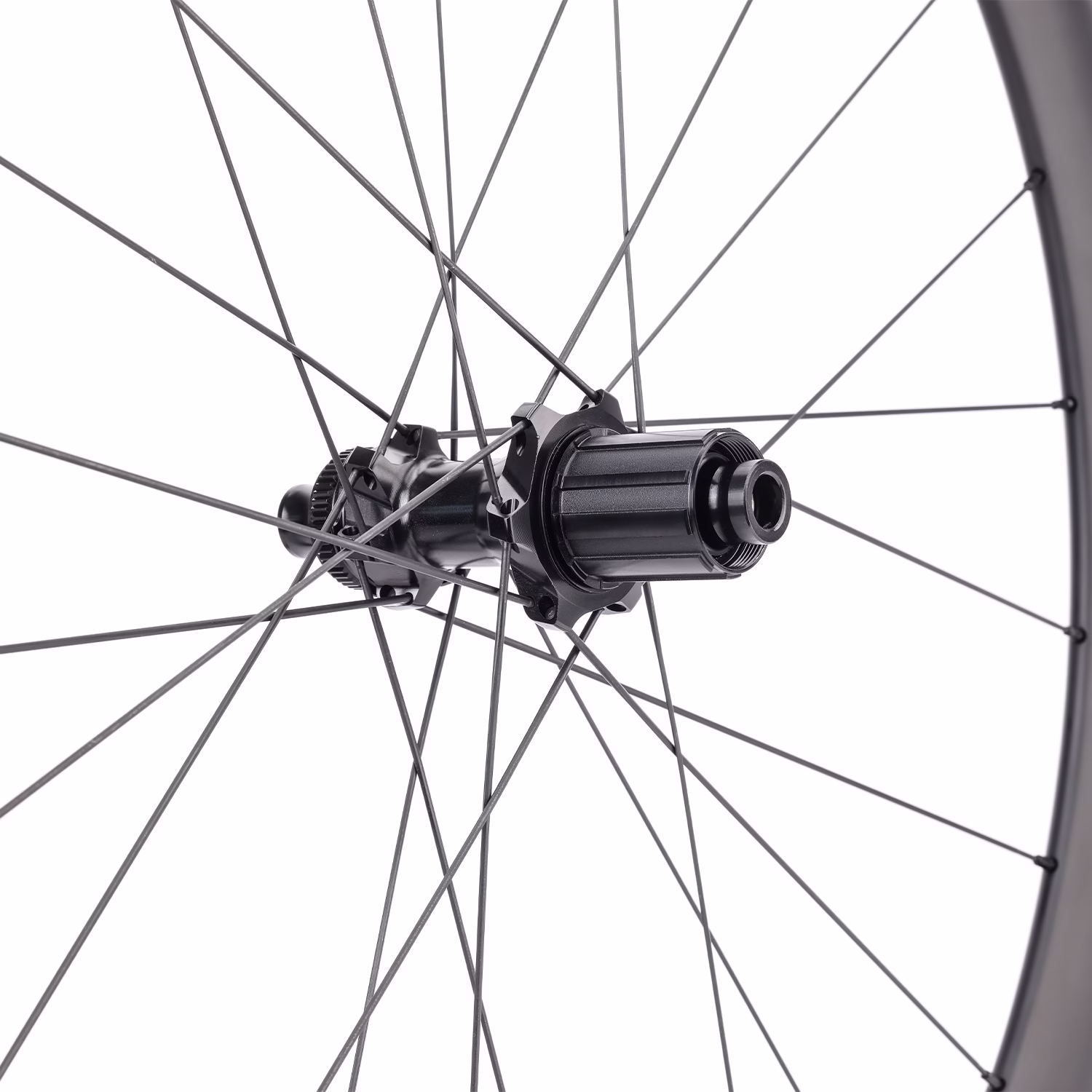

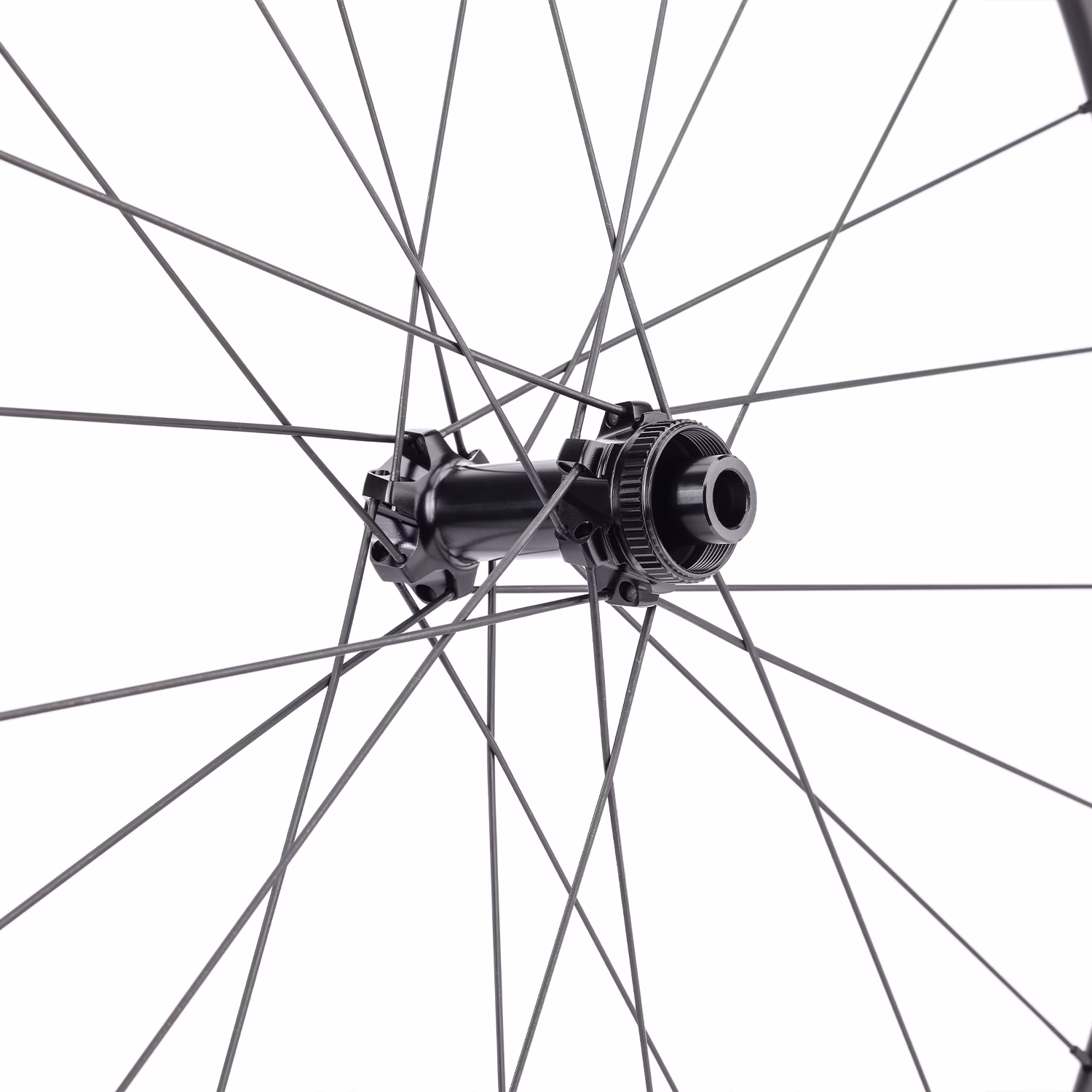

| Hub | D24 Ratchet system |
| Holes | 24H/24H |
| Warranty | 2 Years |
| Test | EN test |
| OEM/ODM Service | holes , drilling angle , spacing ,weave ,pattern customized acceptable |
There are no reviews yet. Be the first one to write one.
ICAN Sport Co.,Ltd, located in Shenzhen with offices and factories,is one of professional manufacturers about carbon bikes and all carbon parts for many years. Found in 2009, more than 200 workers, producing about 1700 PCS frames and 1000 SETS wheelrims per month,now our company enjoys long-term business relationships with many clients on the basis of mutual help.
Our focused items are high-end wheelrims and fashion-trend framesets. To meet strict quality standards and requirements, we have a design team and our own brand ICAN. Currently, both OEM (Well-known brands ) and ODM products are available to meet worldwide requirements ( Passed SGS/EN Test). The products have been exported to America, Canada, Germany, Italy,Singapore, Japan and other international markets. To offer super feeling and do help for agents/ wholesalers, it is our eager dream. We always pursue the policy of “Quality First, Prestige Highest “and promise “Best Quality and Service”. By way of best quality, quick leadtime,kind after-sales service, we are looking for sincere and serious friends to join us together, to create value and fun together! Welcome to our factory!
We provide customized various capabilitis !
We provide various customized services to help clients develop their own brand.
Customized Painting&Logo
We also can painting and decal logo on frames&rims&carbon bicycle parts.
Customized Produce
Rims’ produce can choose paint-less/holes quantity/No Rim-Bed-Hole Tubeless customized produce way.
100% Handbuild Wheelsets
Every wheelsets is purely handbuild.
OEM&ODM
We have a professional engineer team to open OEM molds according to customer requirements.
