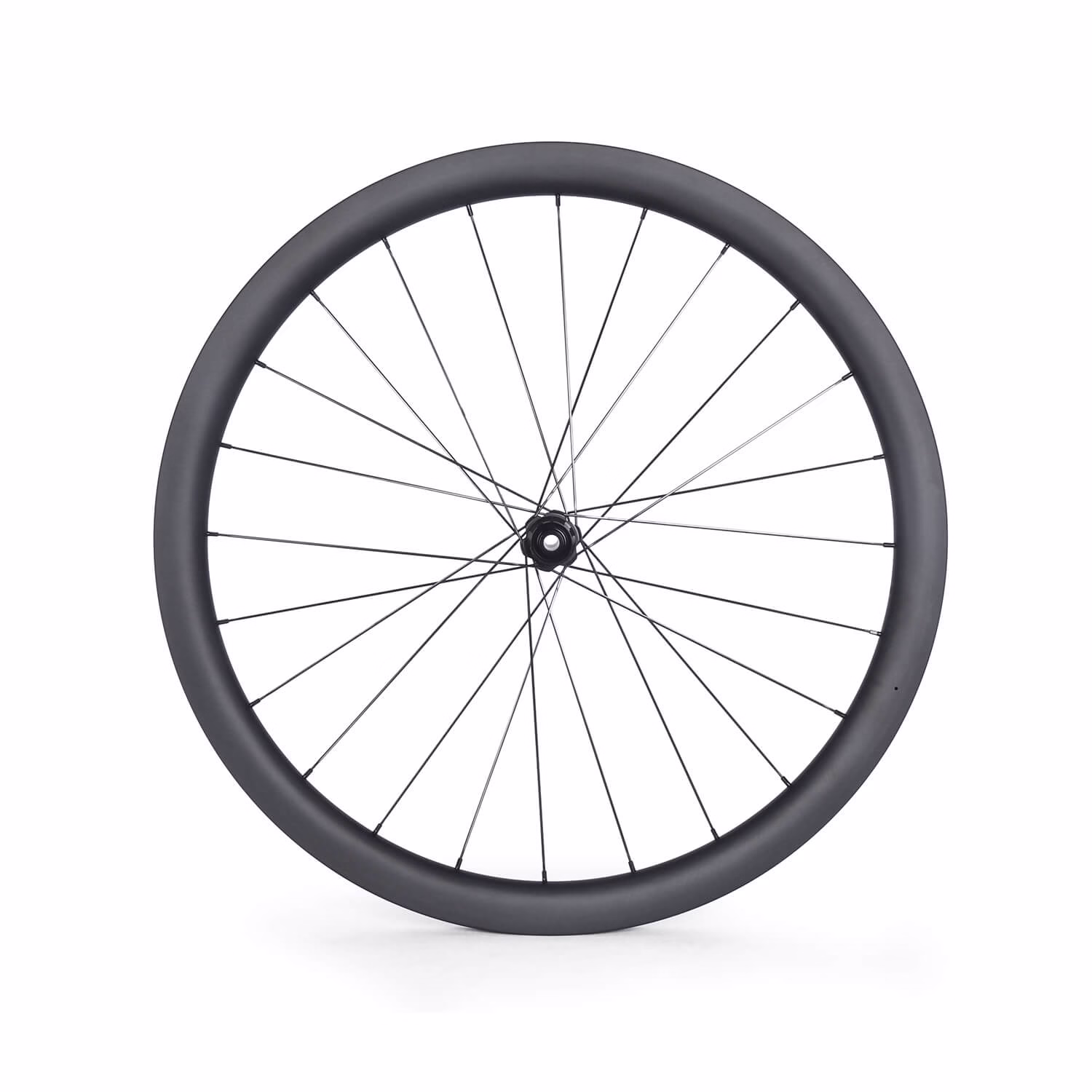

Gravel Bike Wheelset 700C 40mm Depth 25mm inner -40C
ICAN Gravel Bike Wheelset is designed specifically for gravel riding, featuring a 700C size with a 40mm depth and a 25mm inner width. Constructed from 100% carbon fiber (Toray T700 & T800), this wheelset offers a balance between stiffness and lightweight performance, making it suitable for various terrains. It incorporates high-quality Sapim CX Ray spokes and is EN tested for structural integrity.
With a front weight of 631g and a rear weight of 740g, this wheelset is optimized for efficiency and durability. The D24 ratchet hub allows for smooth engagement, while the Shimano (XDR option) freehub provides compatibility with a wide range of drivetrains. The wheelset’s design, with 24 holes per wheel, ensures a reliable and robust setup for gravel adventures.
ICAN Bikes offers 100% customizable wheels with independent R&D and manufacturing. We provide high-quality wheels at competitive prices. Contact us for special specifications, and we’ll tailor solutions to meet your needs.
| Brand | ICAN |
|---|---|
| Type | Carbon gravel wheelset |
| Model | 40C-32 |
| Material | 100% Carbon Fiber Toray T700 & T800 |
| Size | 700C |
| Depth | 40mm |
| Width | inner 25mm, outer 32mm |
| Profile | Clincher tubeless ready ,Asymmetric |
| Intended Use | Gravel bike |
| Hole | 24H/24H |
| Spokes | Sapim CX ray |
| Weight | front 631g±15g,rear 740g±15g |

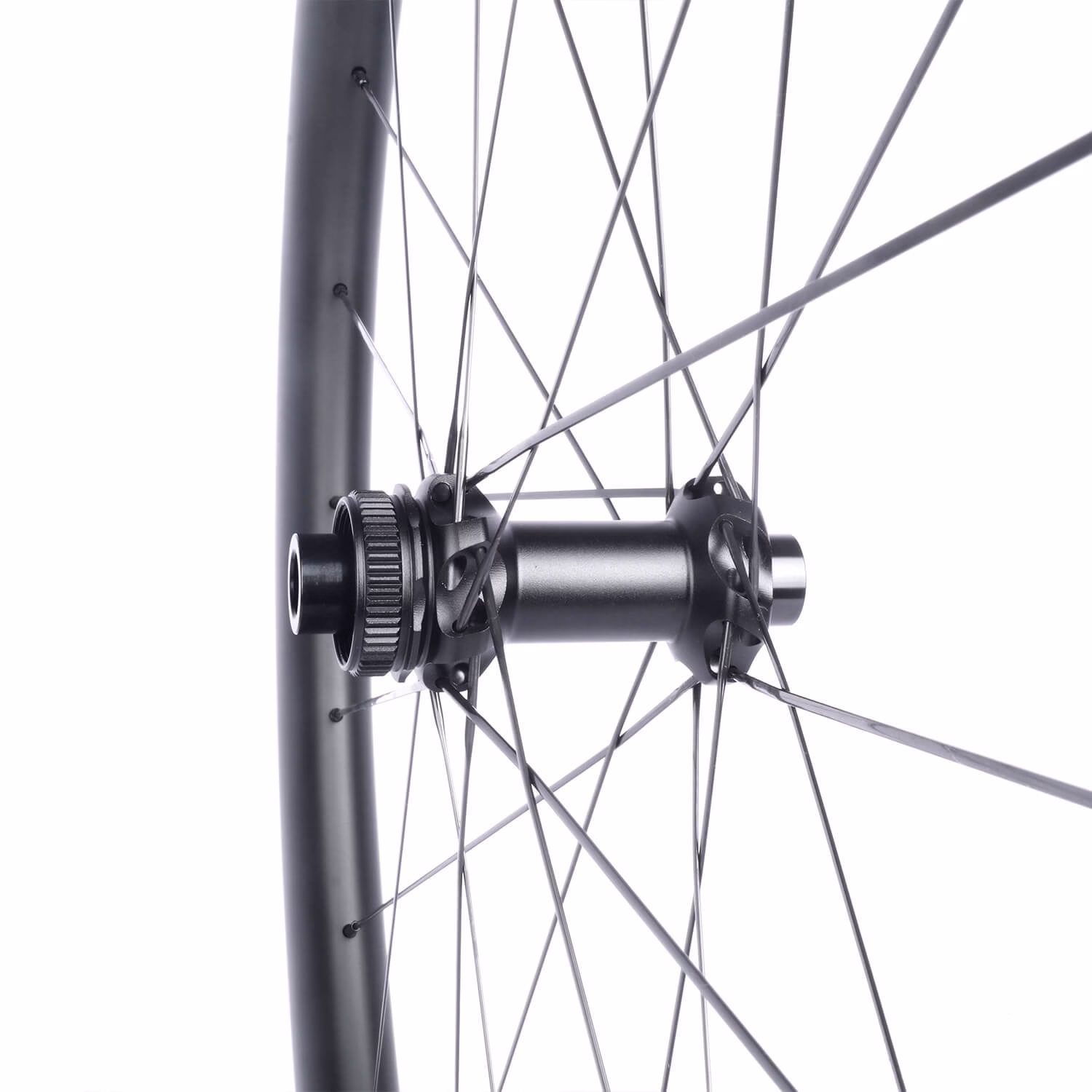

| Hub | D24 Ratchet |

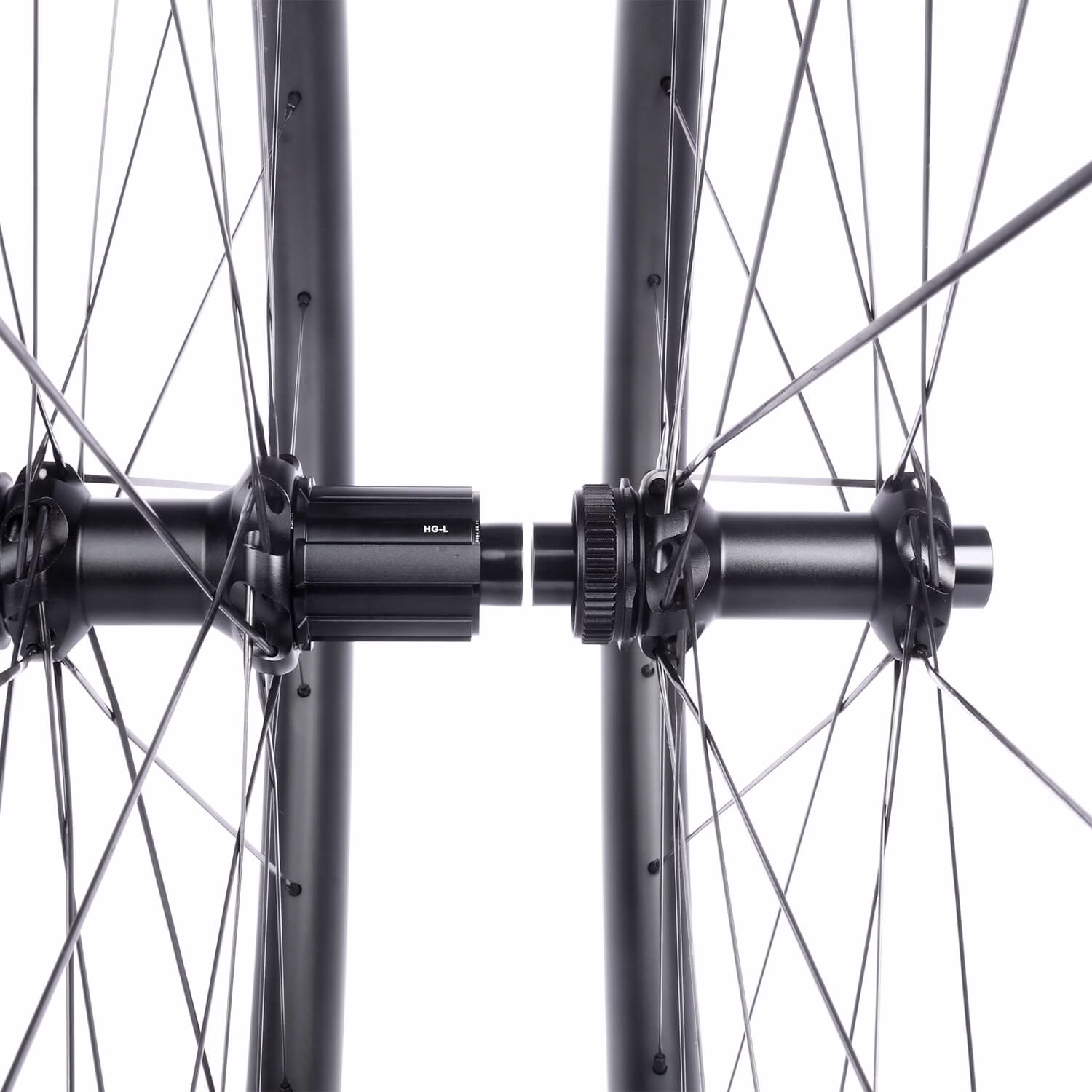

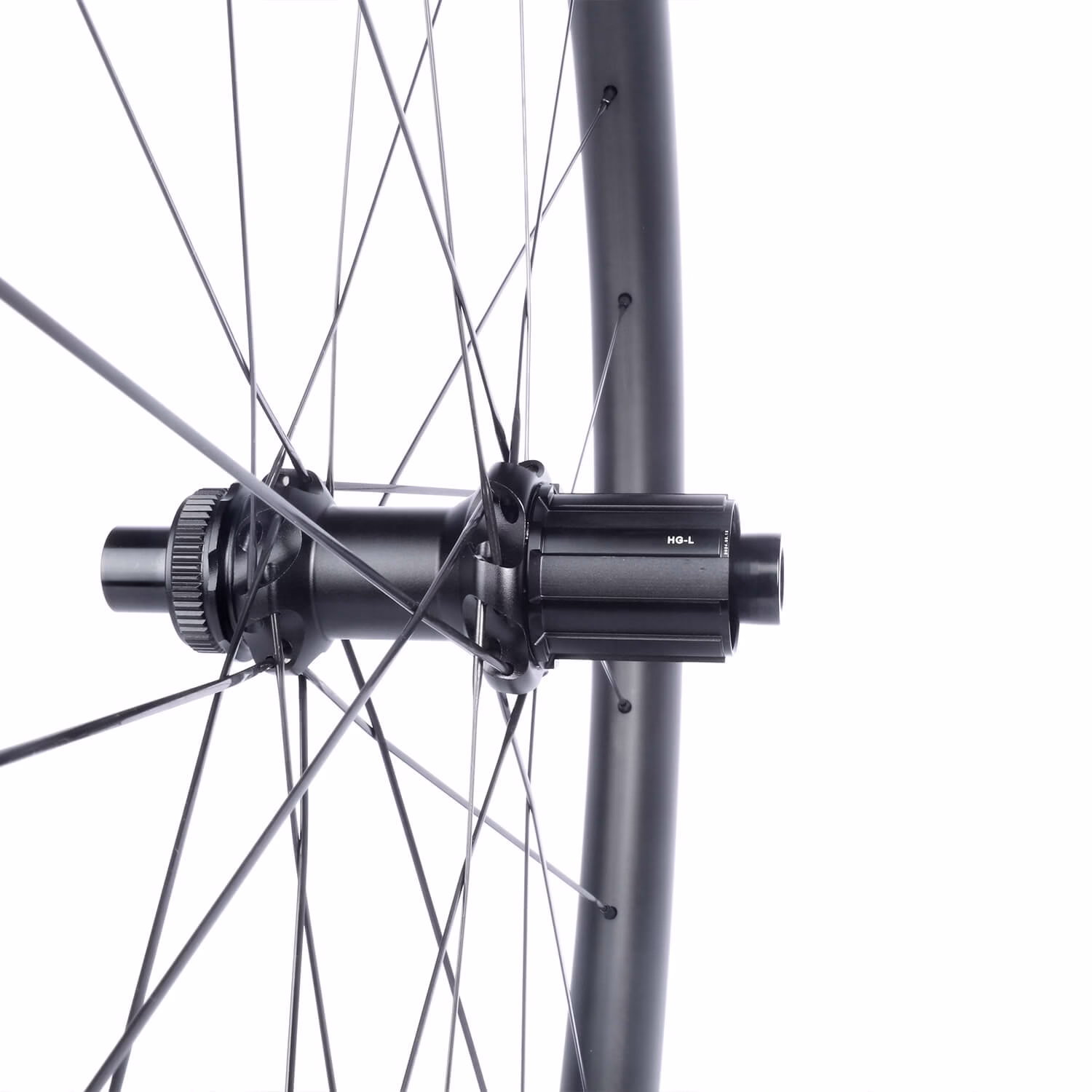

| Freehub | Shimano(XDR choice) |
| Weave | UD matte |
| Front axle sizes | 100*12mm |
| Rear axle sizes | 142*12mm |
| Max cyclist weight | 120kg |
| Rim weight | SL 405g,Standard 450g |
| Warranty | 2 Years |
| Test | EN test |
| OEM/ODM Service | holes , drilling angle , spacing ,weave ,pattern customized acceptable |
There are no reviews yet. Be the first one to write one.
ICAN Sport Co.,Ltd, located in Shenzhen with offices and factories,is one of professional manufacturers about carbon bikes and all carbon parts for many years. Found in 2009, more than 200 workers, producing about 1700 PCS frames and 1000 SETS wheelrims per month,now our company enjoys long-term business relationships with many clients on the basis of mutual help.
Our focused items are high-end wheelrims and fashion-trend framesets. To meet strict quality standards and requirements, we have a design team and our own brand ICAN. Currently, both OEM (Well-known brands ) and ODM products are available to meet worldwide requirements ( Passed SGS/EN Test). The products have been exported to America, Canada, Germany, Italy,Singapore, Japan and other international markets. To offer super feeling and do help for agents/ wholesalers, it is our eager dream. We always pursue the policy of “Quality First, Prestige Highest “and promise “Best Quality and Service”. By way of best quality, quick leadtime,kind after-sales service, we are looking for sincere and serious friends to join us together, to create value and fun together! Welcome to our factory!
We provide customized various capabilitis !
We provide various customized services to help clients develop their own brand.
Customized Painting&Logo
We also can painting and decal logo on frames&rims&carbon bicycle parts.
Customized Produce
Rims’ produce can choose paint-less/holes quantity/No Rim-Bed-Hole Tubeless customized produce way.
100% Handbuild Wheelsets
Every wheelsets is purely handbuild.
OEM&ODM
We have a professional engineer team to open OEM molds according to customer requirements.
