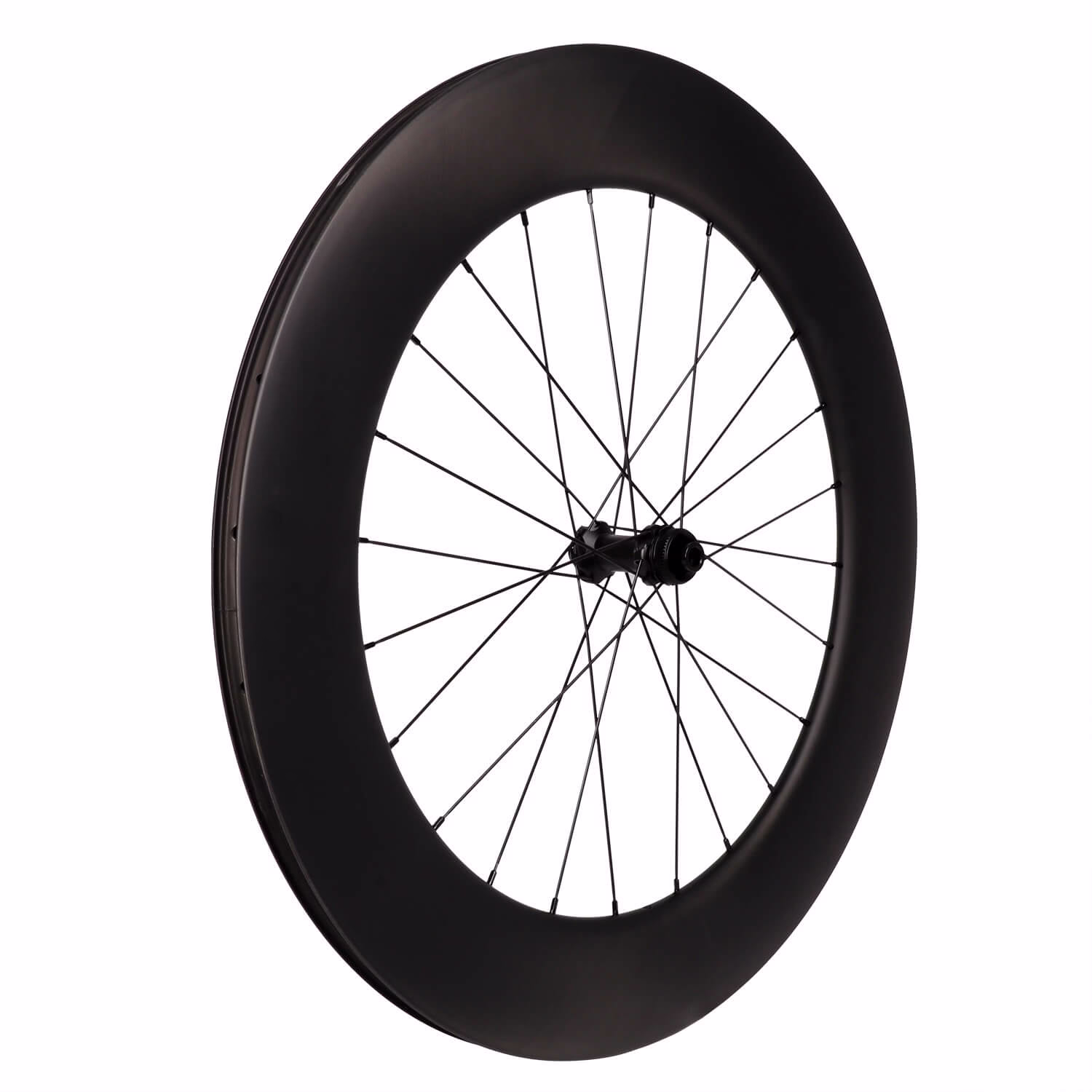

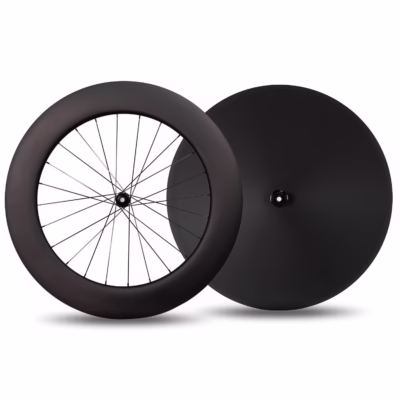

ICAN Full Carbon Time Trial Wheelset features the 86C Front Wheel, crafted from Toray T700 & T800 carbon fiber for durability and lightweight performance. With a depth of 86mm and width of 25mm (inner 18.35mm), its clincher tubeless-ready profile weighs 845±15g. Equipped with a Novatec D24 hub and UD matte weave, it supports a 120kg cyclist weight, offering reliable rim brake compatibility with a 3K brake surface.

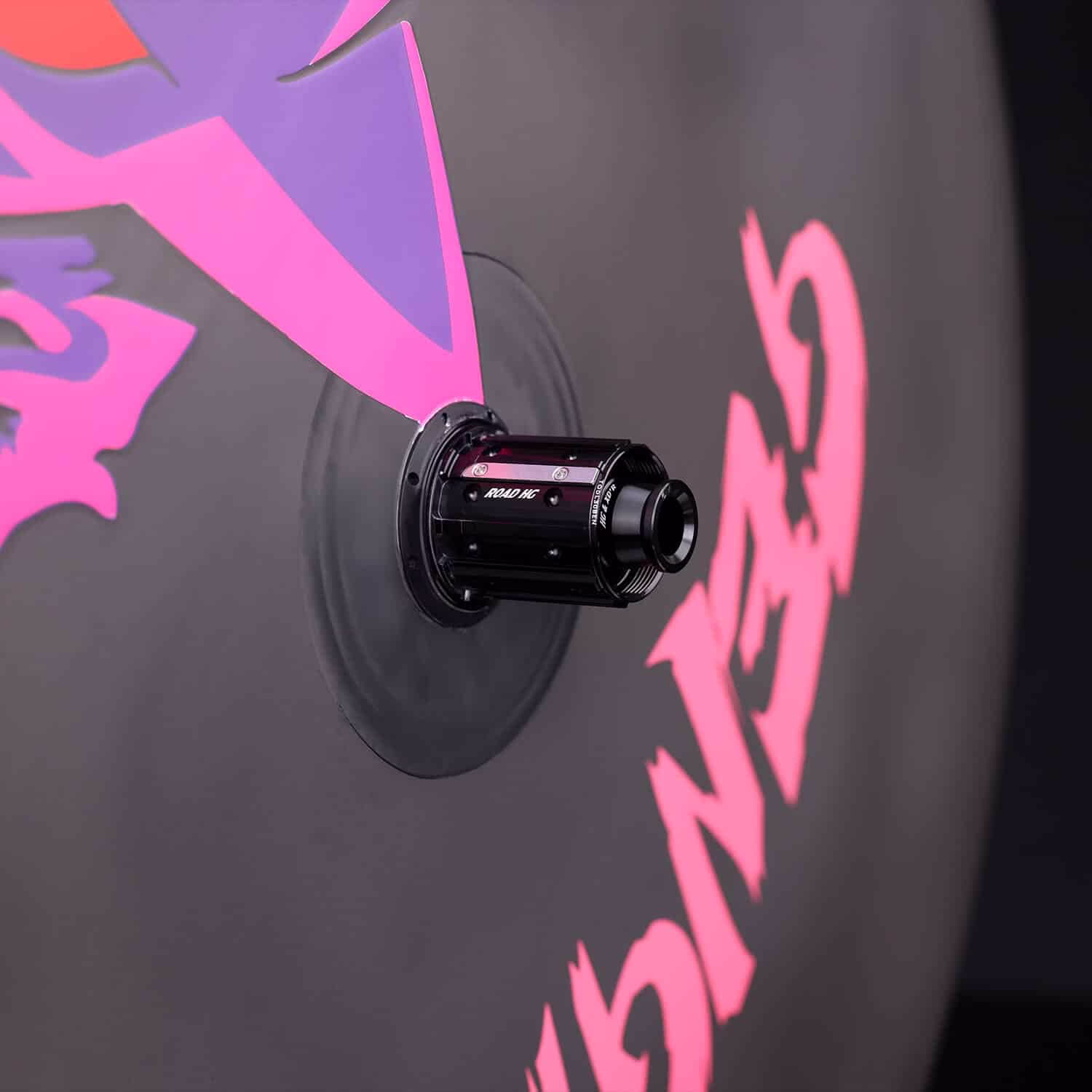

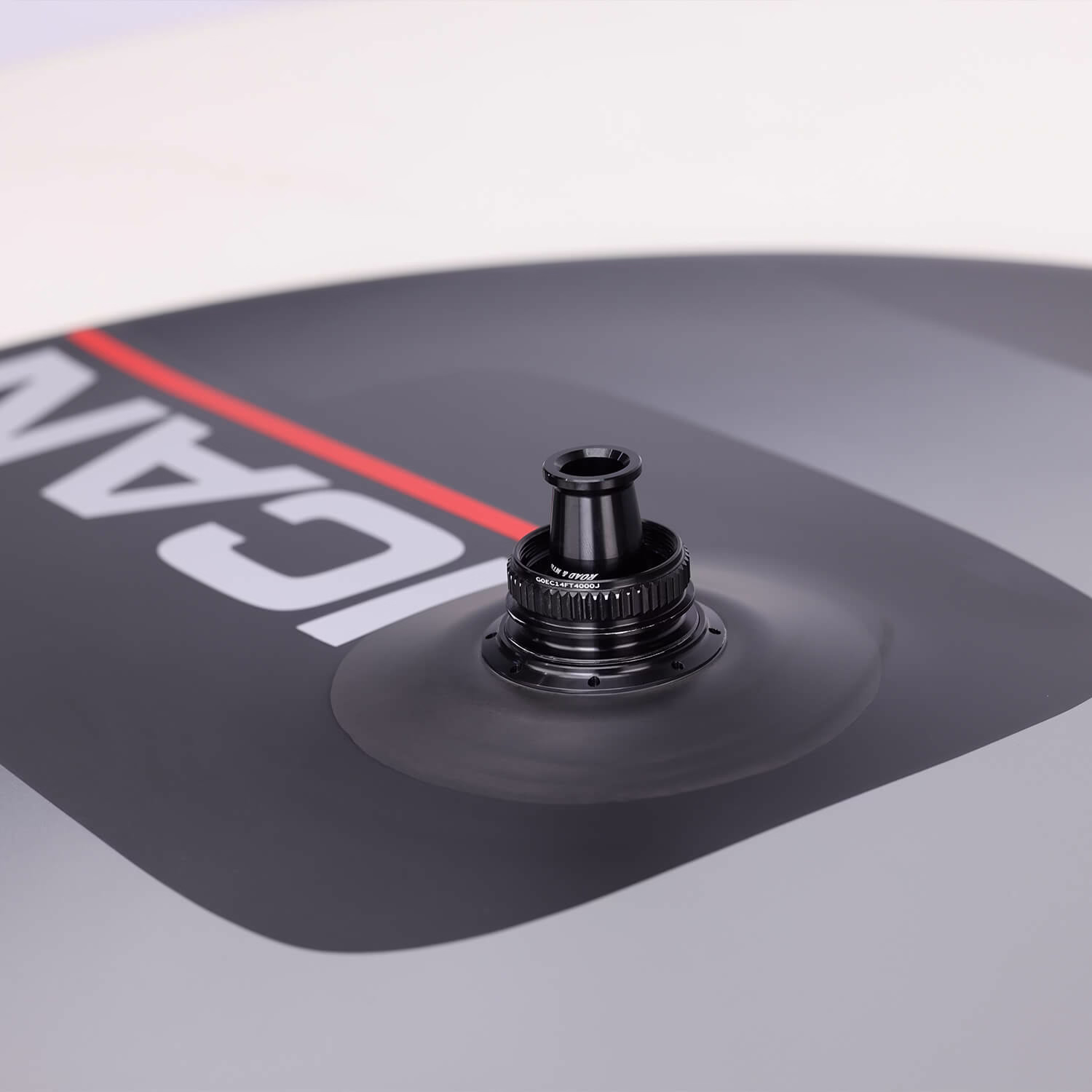

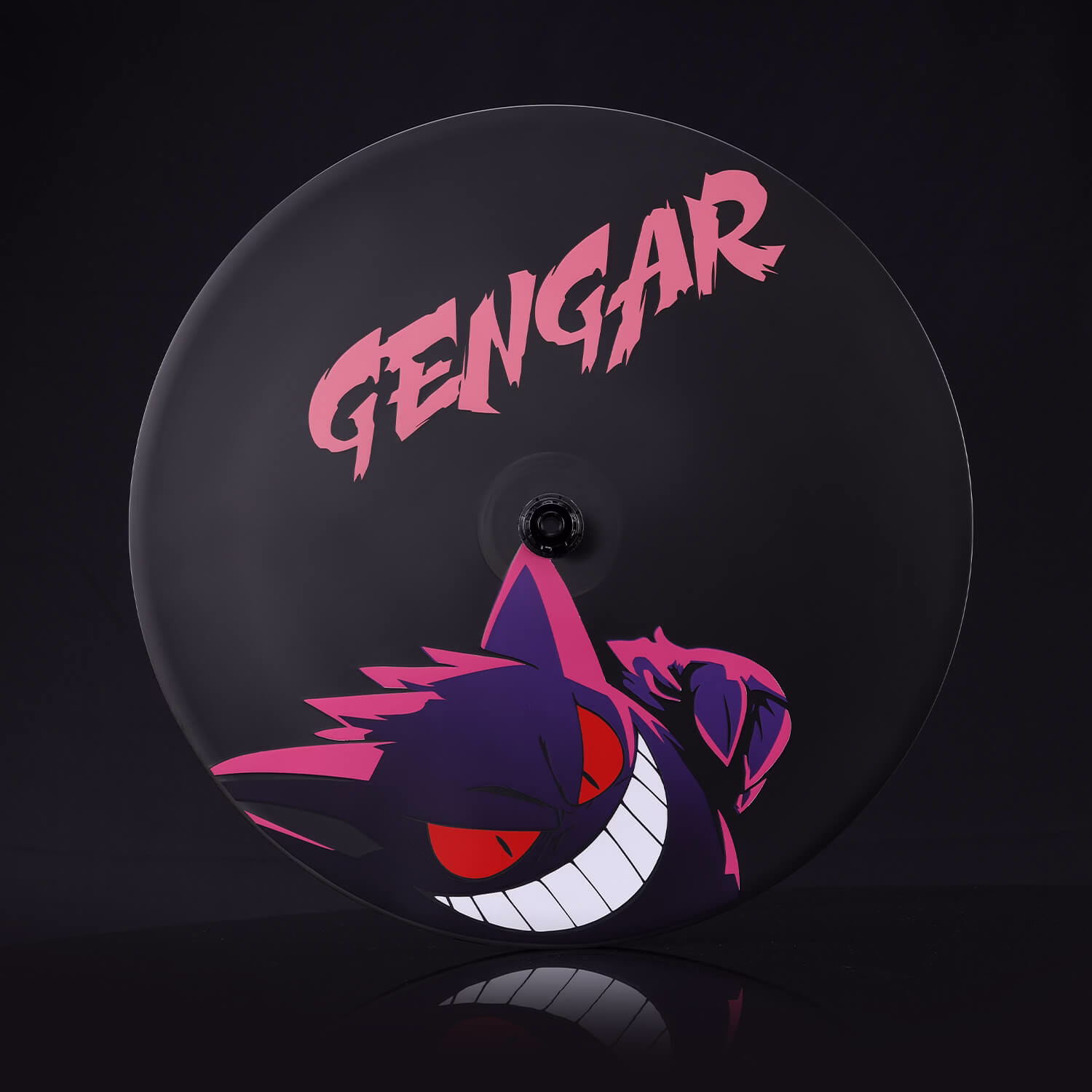

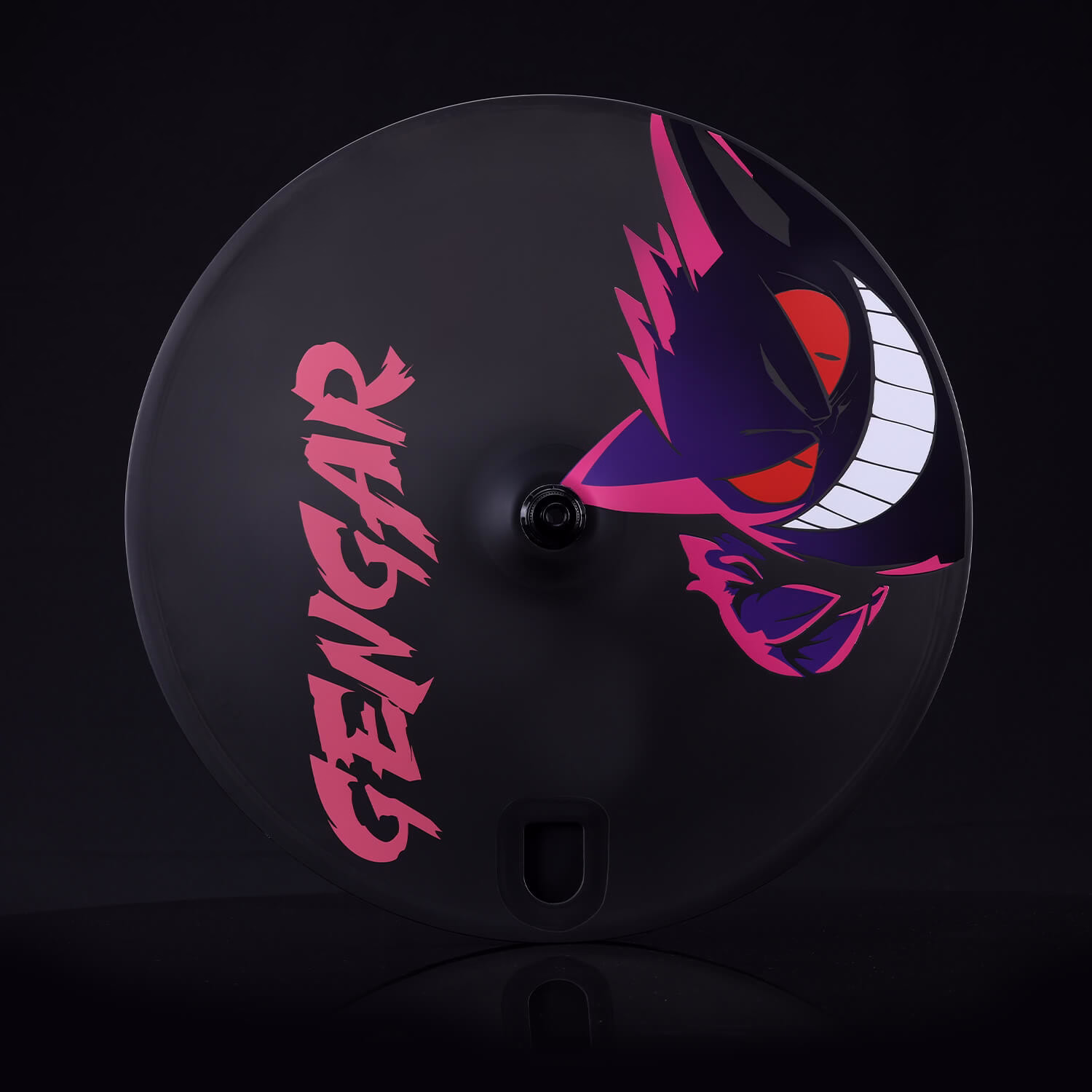

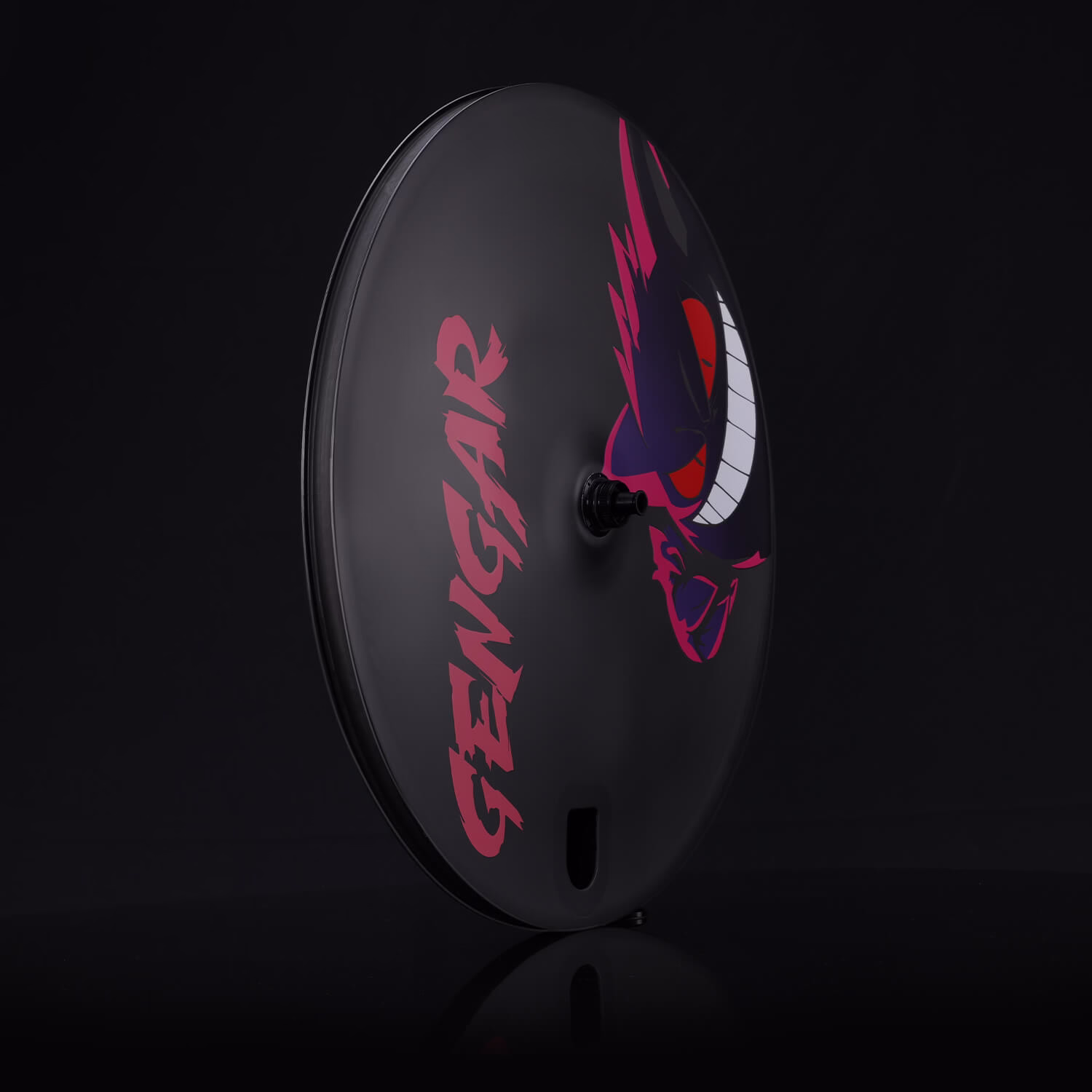

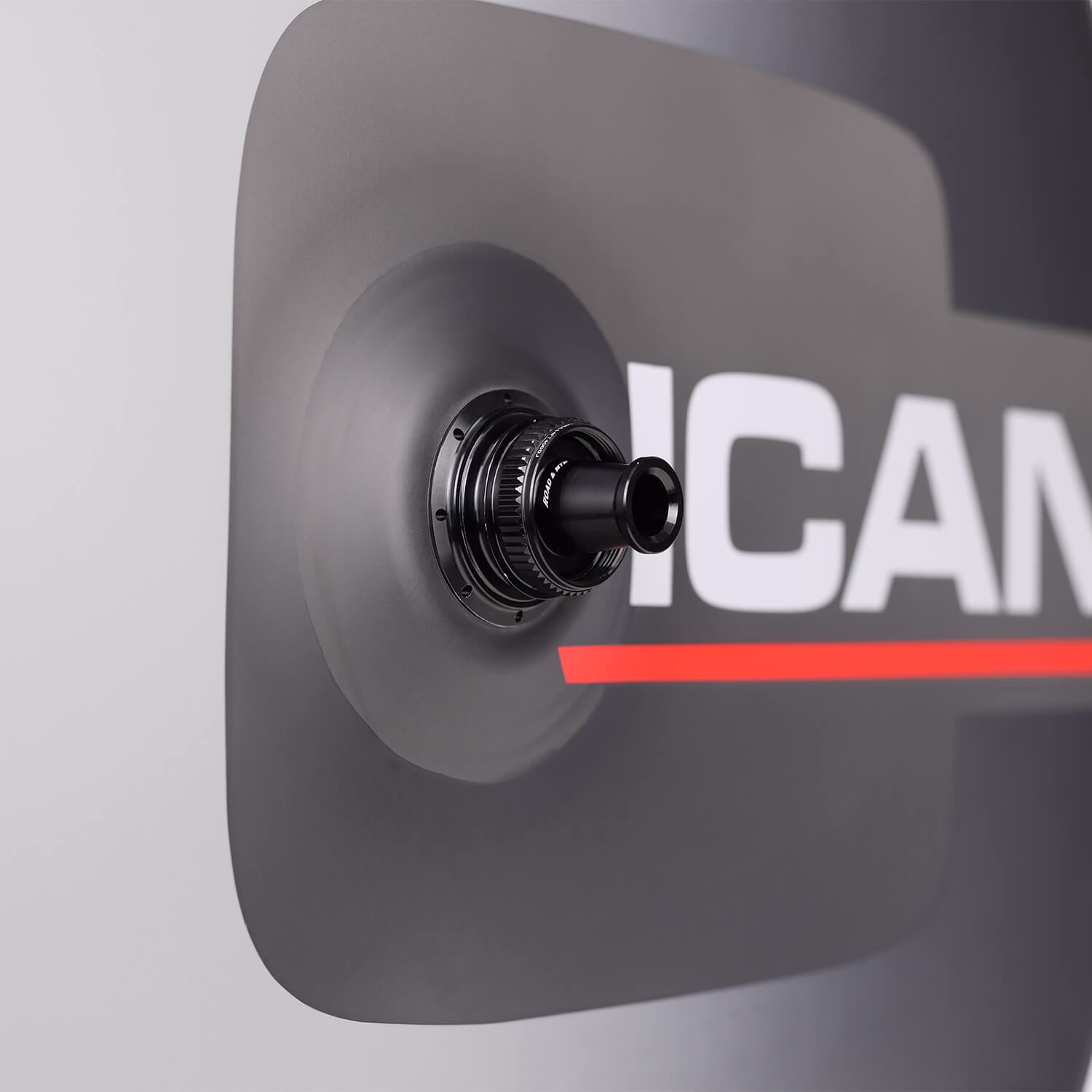

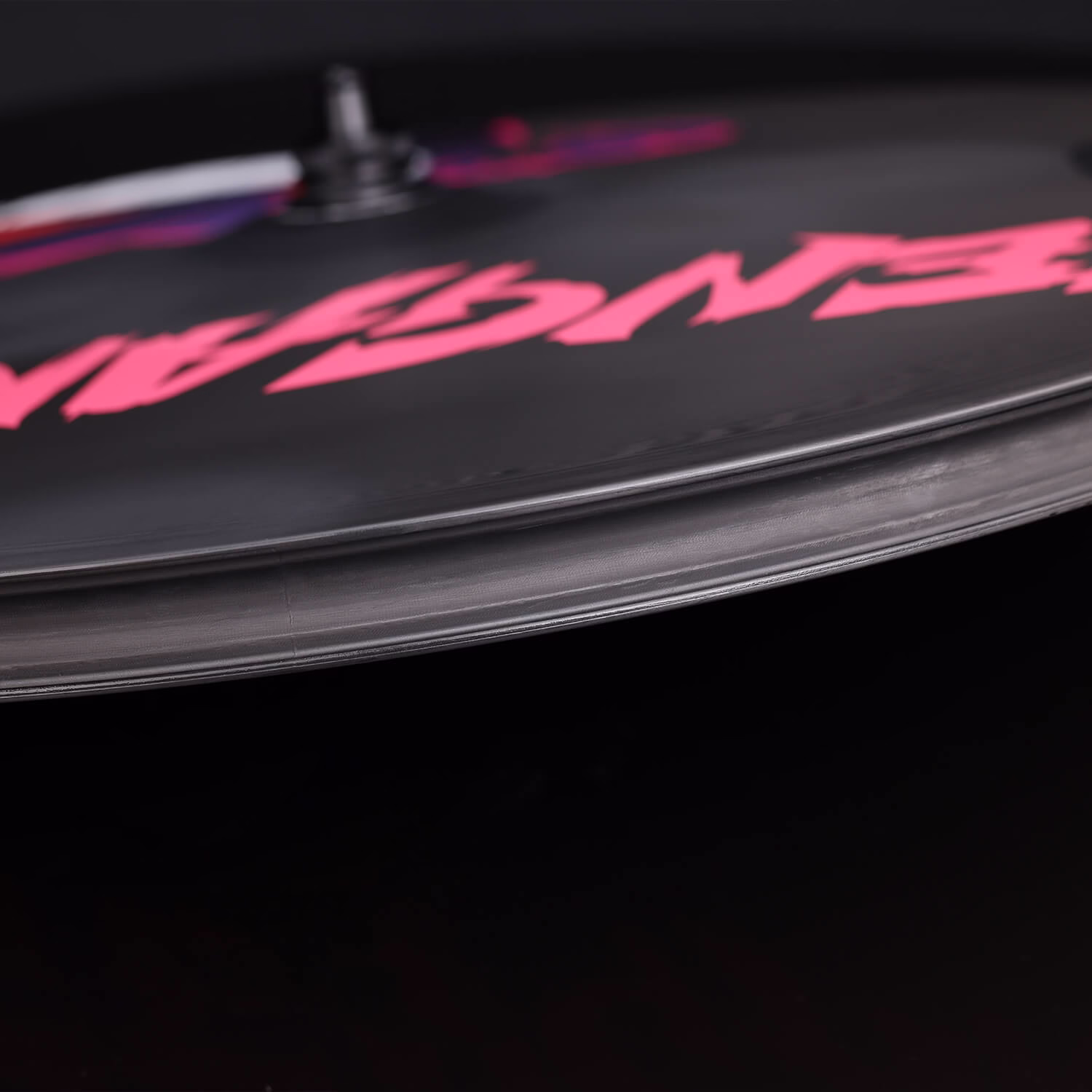

The rear wheel, model D-X, is a full carbon 700C disc wheel using Toray T700, weighing 745±50g (930±40g with DT Swiss 240s EXP hub). Its 25mm width (inner 21mm, outer 27mm) and clincher tubeless-ready design ensure stability and efficiency. Supporting up to 150kg on flat ground, it features a 142*12mm or 135*9mm rear axle, delivering consistent performance for time trial and triathlon applications.

ICAN Bikes offers 100% customizable wheels with independent R&D and manufacturing. We provide high-quality wheels at competitive prices. Contact us for special specifications, and we’ll tailor solutions to meet your needs.

Brand ICAN

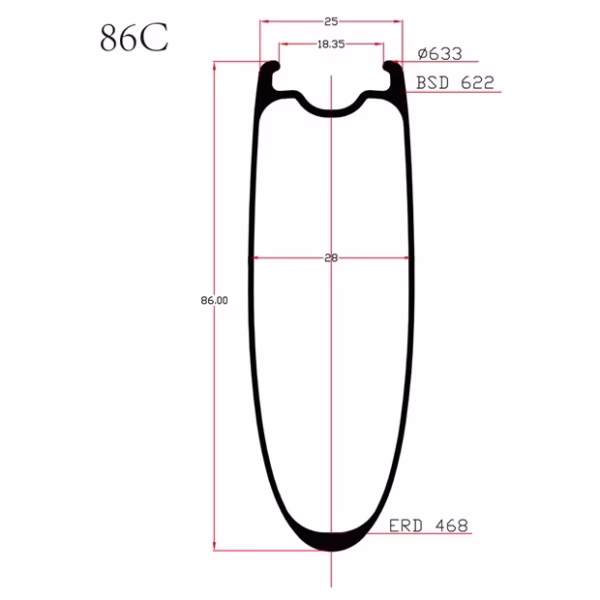

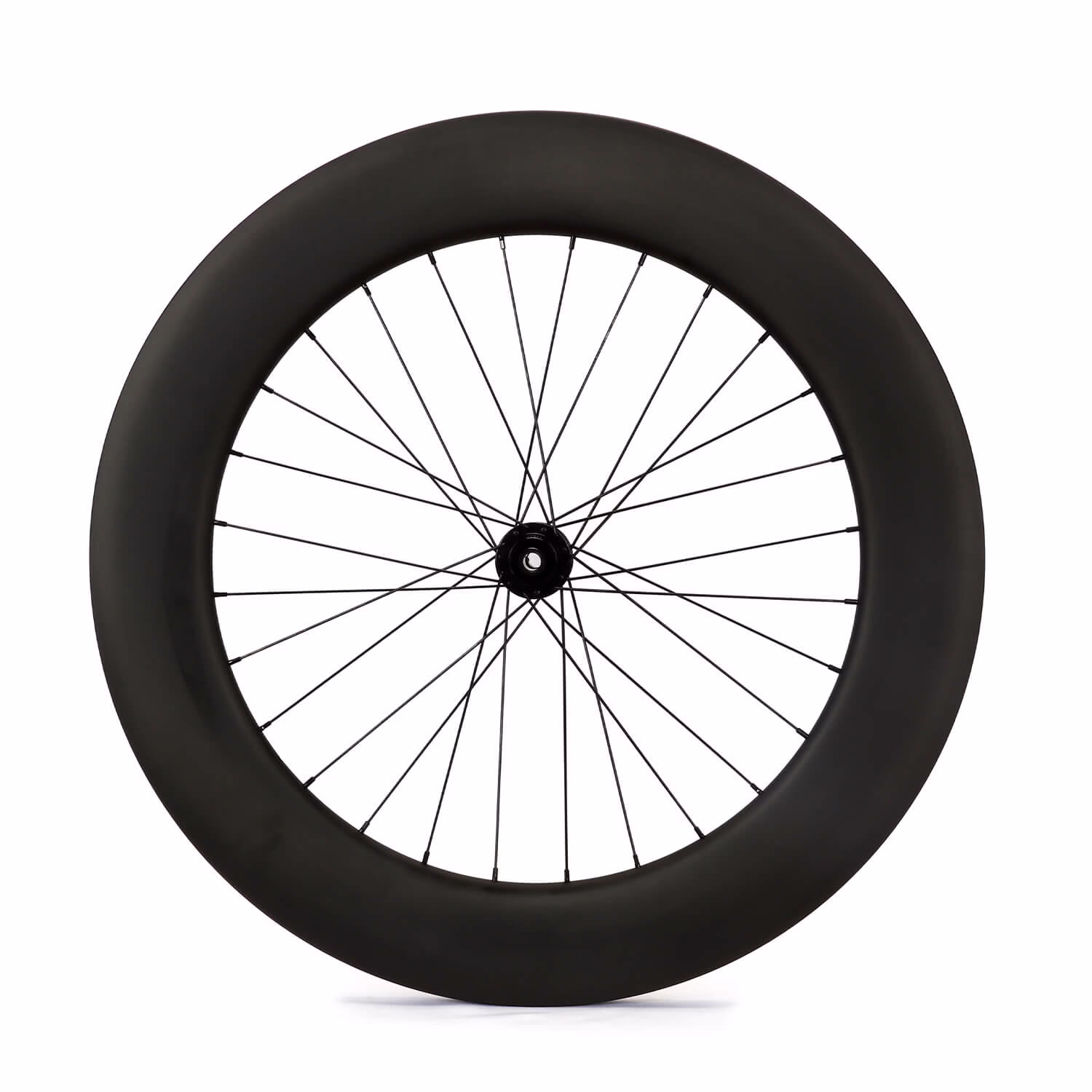

Front wheel 86C
Model 86C-25-Disc
Material Full Carbon Fiber Toray T700
Size 700C
Depth 86mm
Width inner 18.35mm, outer 25mm
Profile Clincher tubeless ready
Hole 24H
Weight 845±15g
Hu D24
Freehub Shimano
Weave UD matte
Front axle sizes 100*12mm
Max cyclist weight 120kg
Rim weight SL 580g, Standard 620g
Compatible No brake edge

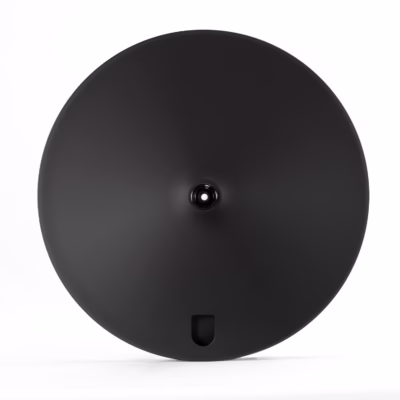

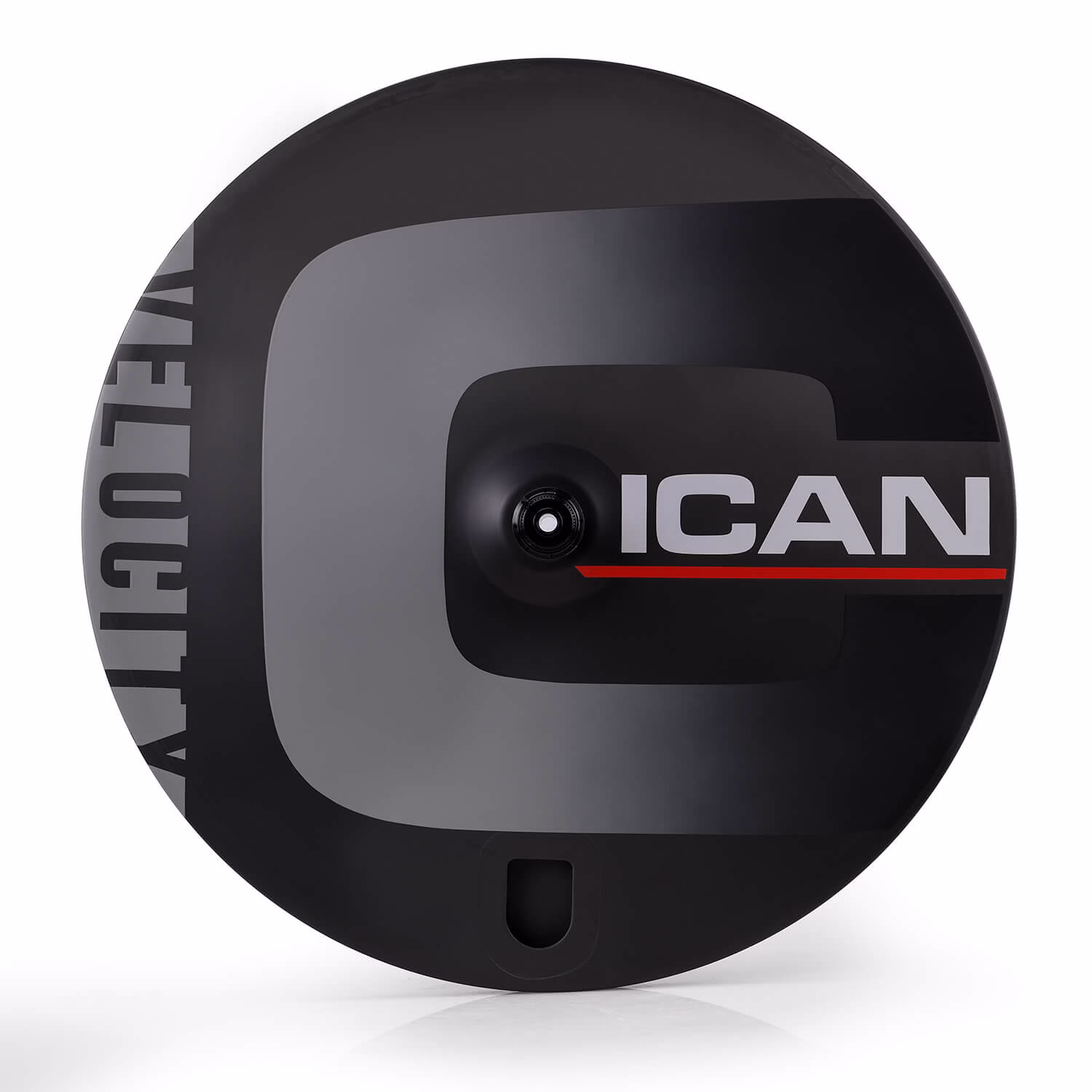

Rear Wheel D-X
Type Carbon 700C disc wheels
Model D-X
Material Full Carbon Fiber Toray T700
Size 700C
Width 25mm
Profile Clincher Tubeless Ready
Weight (hub excluded): 745+/-50g
(hub DT Swiss 240s EXP)：930+-40g
Inner/Outer Width 21mm/27mm
Rear axle sizes 142*12mm/135*9
Front axle sizes 100*12mm
Max Cyclist Weight (on flat ground) 150kg/ 331lbs
Test EN test
OEM/ODM Service holes , drilling angle , spacing ,weave ,pattern customized acceptable

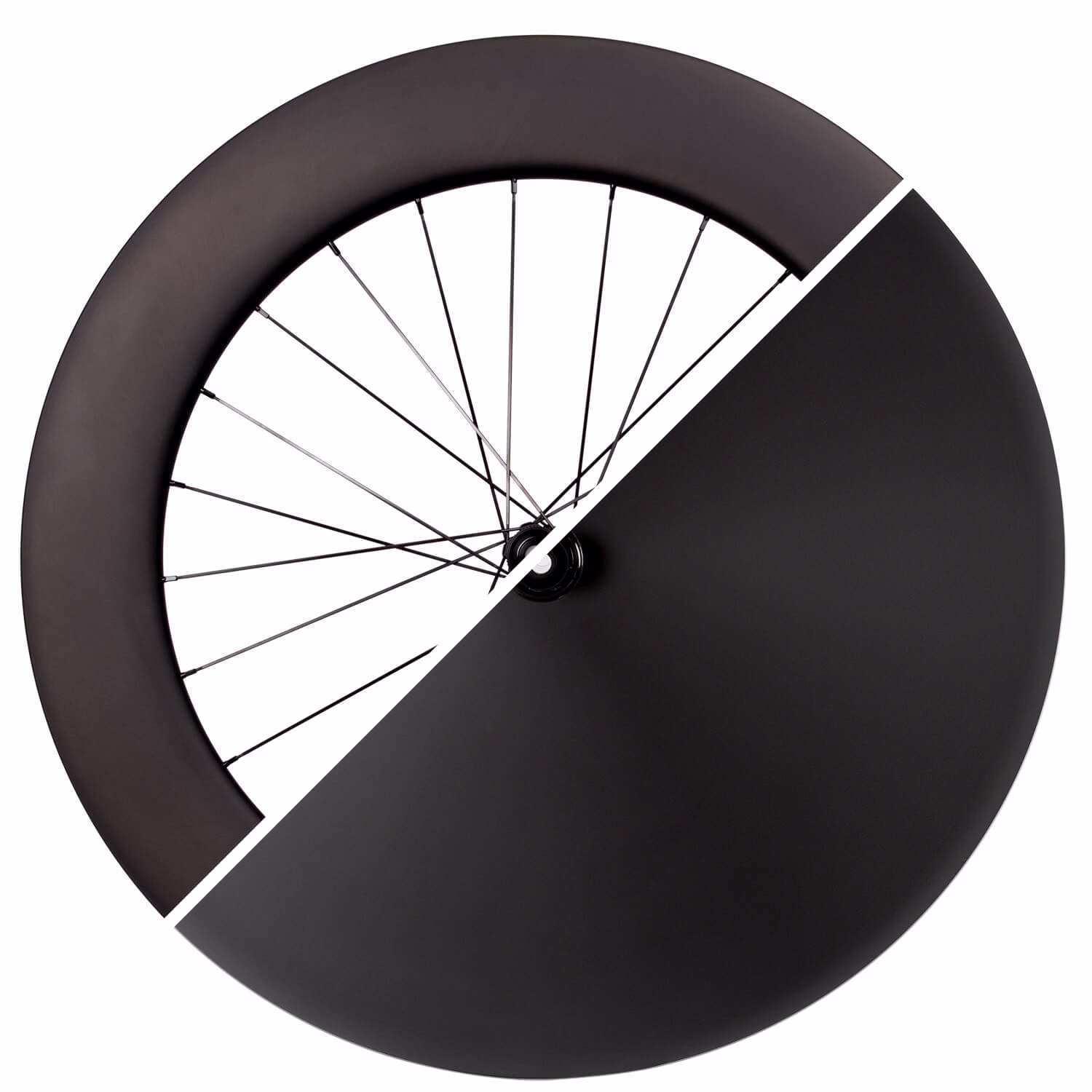

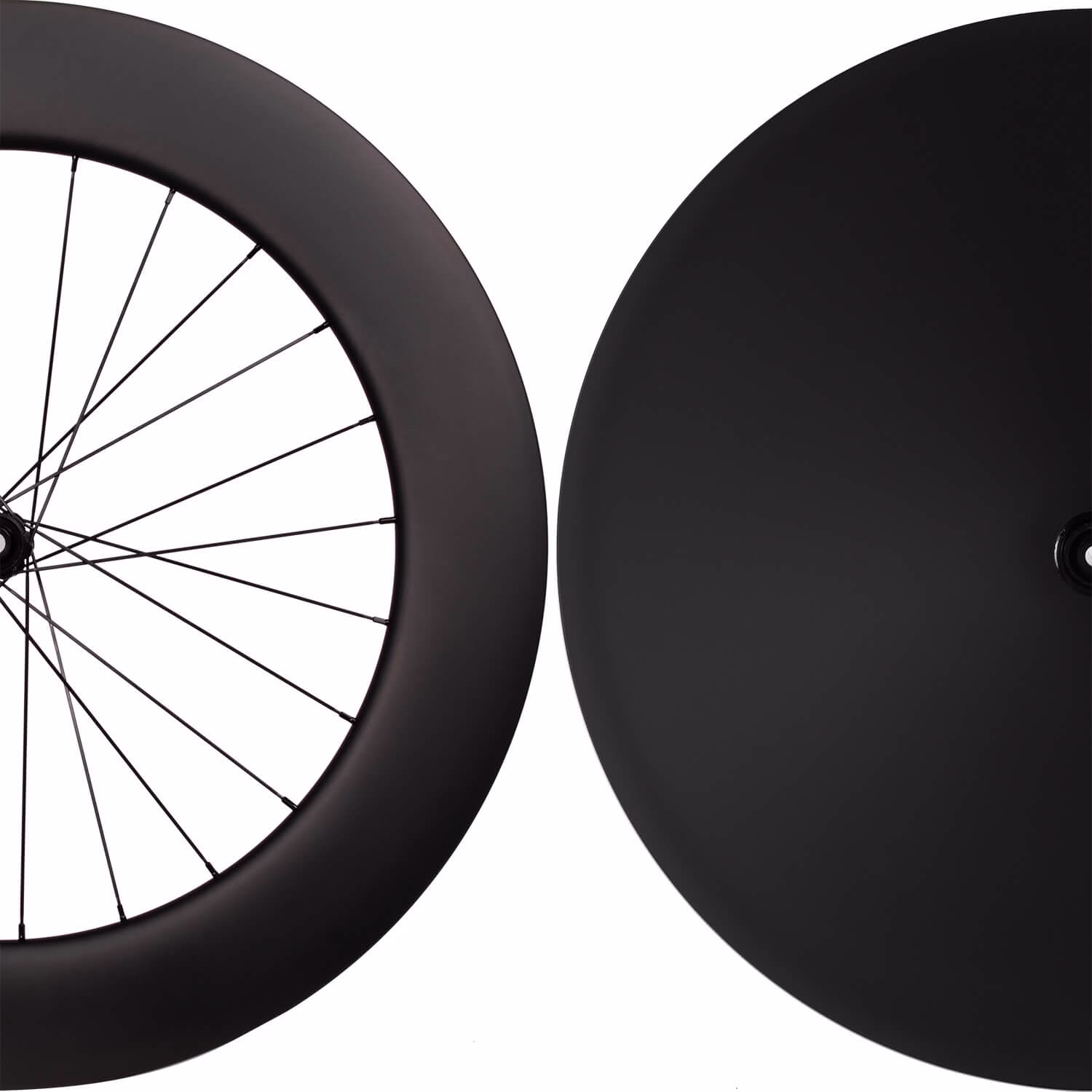

ICAN Full Carbon Time Trial Wheelset pairs a deep-section front wheel with a rear disc, both crafted from premium carbon fiber. Carbon TT Wheelset unites the 86C front (86mm depth) and D-X rear disc , both crafted from Toray T700 & T800 carbon fiber. Together, they optimize aerodynamics with a streamlined valve cover and 23-25mm tire compatibility, reducing drag effectively.

The front’s 86mm deep profile cuts through air efficiently, while the rear disc enhances aerodynamic flow. Together, they optimize speed with a streamlined valve cover and wider tire compatibility.

This set leverages deep-section design for professional performance. The front wheel’s depth ensures stability and reduces drag, complemented by the rear’s stiff core and reliable hub. Their U/V rim profiles mitigate crosswind effects, offering cyclists precise control and consistent efficiency across demanding conditions.
