Full Carbon E-bike Suspension Frame E08

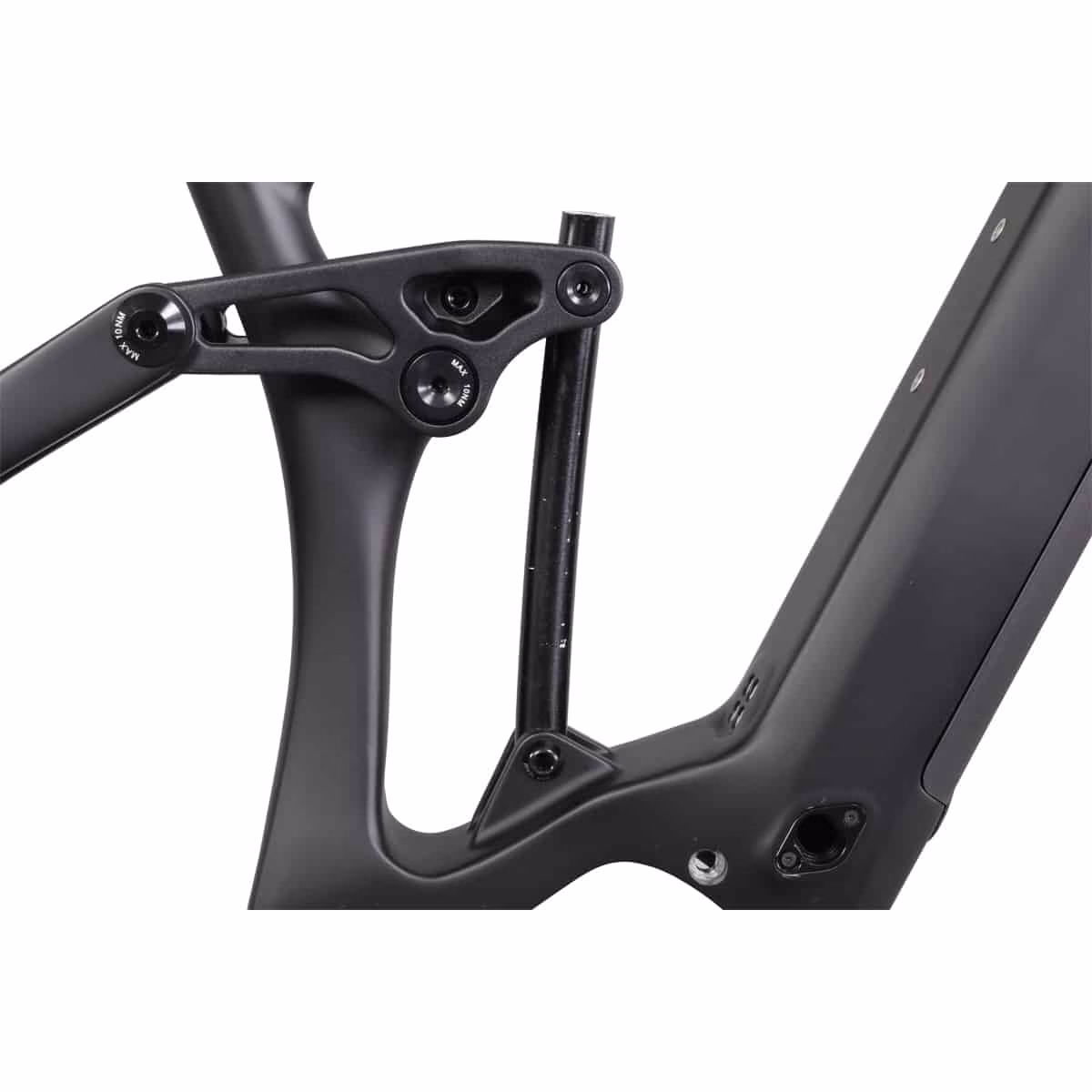

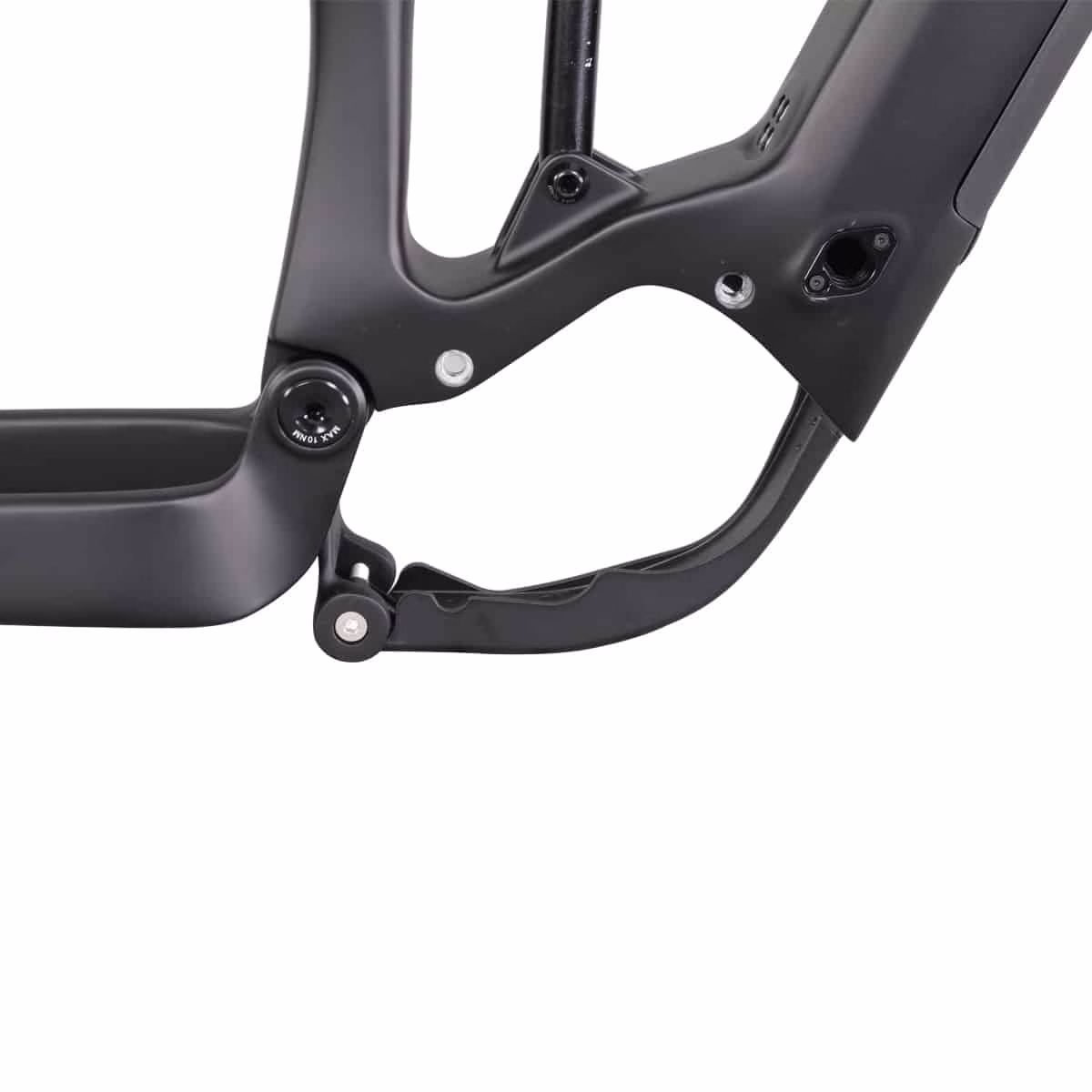

Full Carbon E-bike Suspension Frame E08 is crafted from Toray T700 carbon fiber, providing strength and a lightweight feel. Available in sizes 16”, 18”, and 20”, this frame supports a maximum tire width of 29*2.35” or 27.5*3.0”, ensuring versatility for different riding conditions. With 150mm of front and rear travel, it delivers a smooth ride over various terrains.
Designed with practicality in mind, the frame includes an FSA NO.57 head tube and features all internal cable routing for a clean aesthetic. The O.L.D. axle is 12*148mm, promoting stability and compatibility. Weighing approximately 1170±40g for the 18” size, it also accommodates a 31.6mm seatpost. The Darfon battery offers 504Wh with a secure horizontal mount, enhancing your e-biking experience.
ICAN Bikes offers 100% customizable carbon bikes frame with independent R&D and manufacturing. We provide high-quality full carbon bikes frame at competitive prices. Contact us for special specifications, and we’ll tailor solutions to meet your needs.
| Brand | ICAN |
|---|---|
| Type | Carbon E bike suspension frame |
| Model | E08 |
| Material | Full Carbon Today T700 |
| Color | UD matte or Customzied Painting |
| Available Size | 16”/18”/20” |
| Tire size | 29*2.35”/27.5*3.0” |
| Travel | F150mm R150mm |
| Headtube | FSA NO.57 |
| WEIGHT: | 18”-1170±40g 16”-3540±40g 20”-1170±40g |
| Cable | All internal cable |
| Seatpost | Dia 31.6mm |
| Battery | Darfon Battery-3D-E4C0C-001 (504wh,Horizontal ,with mount) |
| Crankset | FC-E8000 SM-CRE80 34T |
| Display | Shimano ANTRIEBSEINHEIT DU-E8000 |
There are no reviews yet. Be the first one to write one.
ICAN Sport Co.,Ltd, located in Shenzhen with offices and factories,is one of professional manufacturers about carbon bikes and all carbon parts for many years. Found in 2009, more than 200 workers, producing about 1700 PCS frames and 1000 SETS wheelrims per month,now our company enjoys long-term business relationships with many clients on the basis of mutual help.
Our focused items are high-end wheelrims and fashion-trend framesets. To meet strict quality standards and requirements, we have a design team and our own brand ICAN. Currently, both OEM (Well-known brands ) and ODM products are available to meet worldwide requirements ( Passed SGS/EN Test). The products have been exported to America, Canada, Germany, Italy,Singapore, Japan and other international markets. To offer super feeling and do help for agents/ wholesalers, it is our eager dream. We always pursue the policy of “Quality First, Prestige Highest “and promise “Best Quality and Service”. By way of best quality, quick leadtime,kind after-sales service, we are looking for sincere and serious friends to join us together, to create value and fun together! Welcome to our factory!
We provide customized various capabilitis !
We provide various customized services to help clients develop their own brand.
Customized Painting&Logo
We also can painting and decal logo on frames&rims&carbon bicycle parts.
Customized Produce
Rims’ produce can choose paint-less/holes quantity/No Rim-Bed-Hole Tubeless customized produce way.
100% Handbuild Wheelsets
Every wheelsets is purely handbuild.
OEM&ODM
We have a professional engineer team to open OEM molds according to customer requirements.
